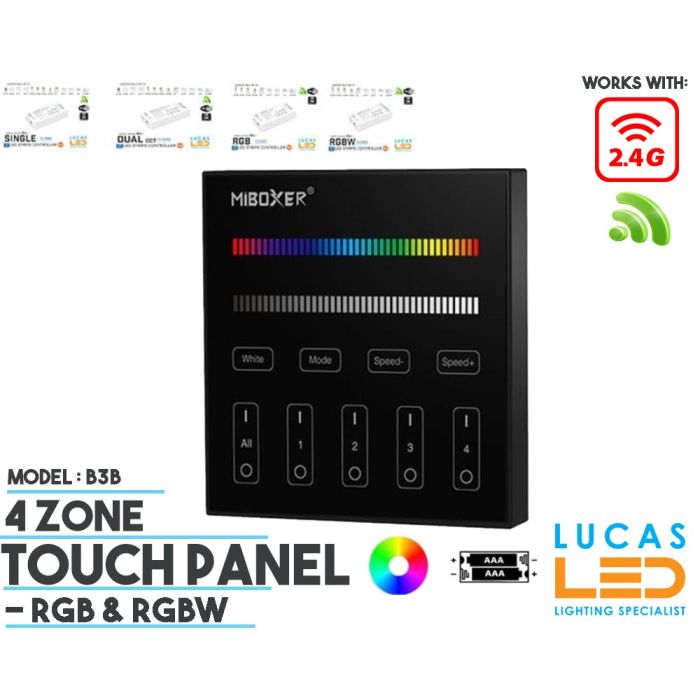

RGBW Adjust Smart Touch Panel Remote Controller • MiLight 4 Zone B3B • Wall mounted • 2xAAA • Black edition

Wall mounted 4 Zone Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037 , RGBW controllers FUT038 , CCT controllers FUT035 & Single controllers FUT036.

RGB & White Color LED Controller:

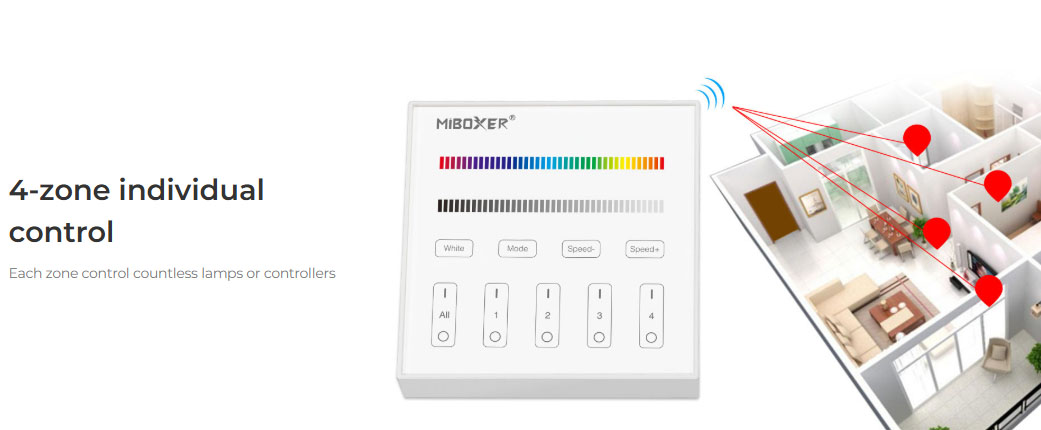

This Touch Panel working on 2 xAAA batteries , and communicate by radio Signal 2.4Ghz . That mean Panel be catch all controllers to 30 , and can be completly at different location than your LED strips lighting , eg. Wall Panel is installed by doors ,and your Controller for a strips lighting can be at others location in room up to 4 zone , with each zone reqiured One controller.

Application :

Depending of Application with multi Zone Panel u can control every lighting system & Colors.Let say :
1.Warm White (Kitchen Cabinet)
2. RGB ( cieling edge)
3. E27 Bulb RGBW (Pendant)
4. GU10 Spotlight RGBW.

Specifications:

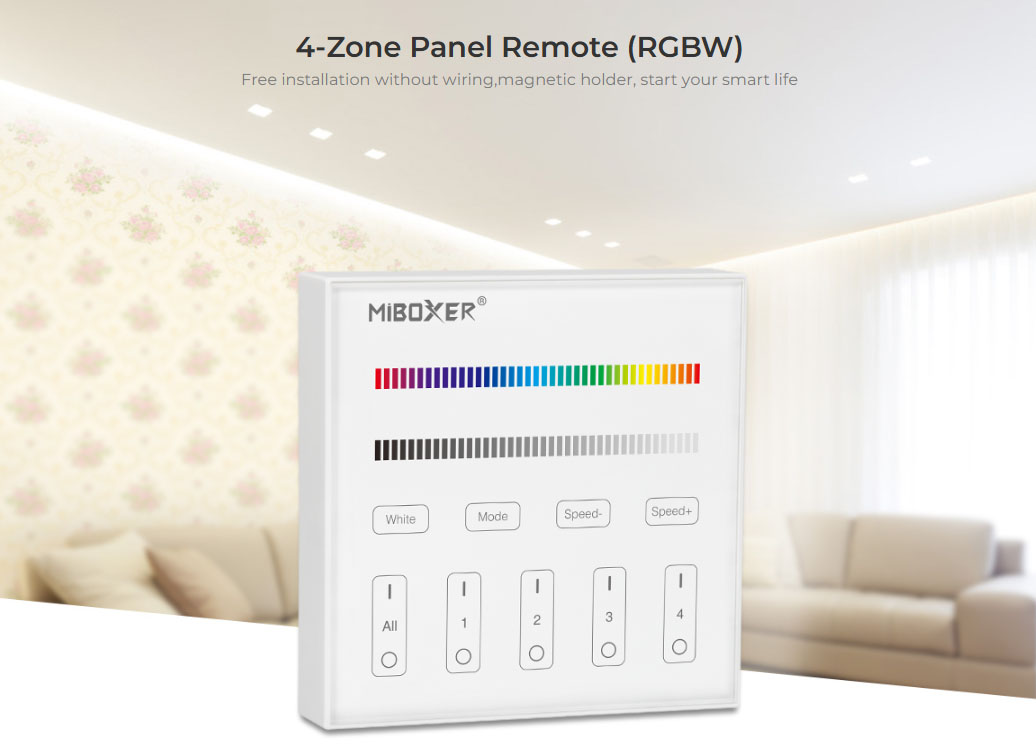

Product Name: 4-Zone Panel Remote (RGBW)
Model No.: B3-B (Black)
Working Voltage: 3V (AAA * 2PCS)
Standby Power Consumption: 20µA
Transmitting Power: 6dBm
RF: 2.4GHz
Control Distance: 30m
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Working Temperature: -10~40°C
