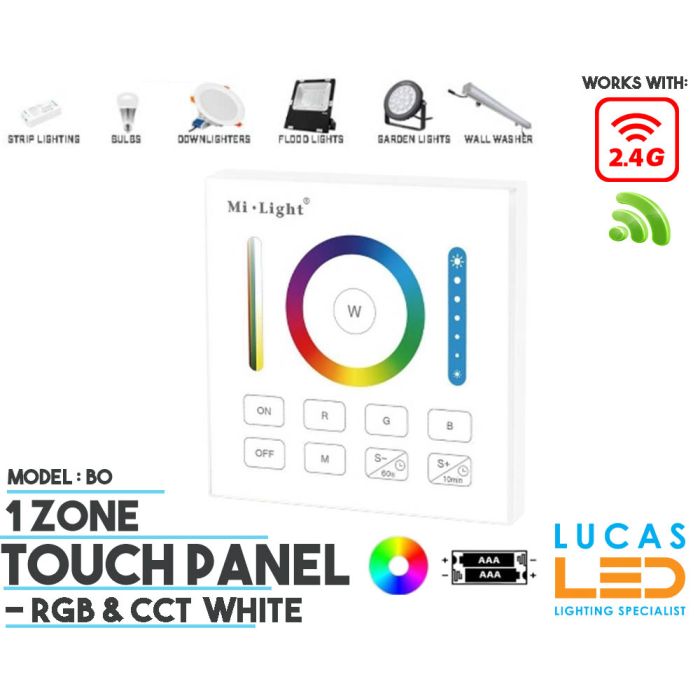

LED Touch Panel Switch • RGB+CCT LED Strip • MiBoxer • Dimmer • 1 zone • 2.4G • Wireless • Smart Lighting System • B0 • 2xAAA
Wall mounted controller RGB+CCT 1-zone 2xAAA B0
RGB & CCT Color Adjust Smart Touch Panel Remote Controller • MiLight B0 • Wall mounted• 2xAAA
Wall mounted single Zone Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037 , RGBW controllers FUT038, CCT controllers FUT035 & Single controllers FUT036.
RGB & CCT LED Controller:
This Touch Panel working on 2 xAAA batteries , and communicate by radio Signal 2.4Ghz . That mean Panel be catch all controllers to 30 , and can be completly at different location than your LED strips lighting , eg. Wall Panel is installed by doors ,and your Controller for a strips lighting can be at others location in room, with each zone reqiured One controller.


Specifications:

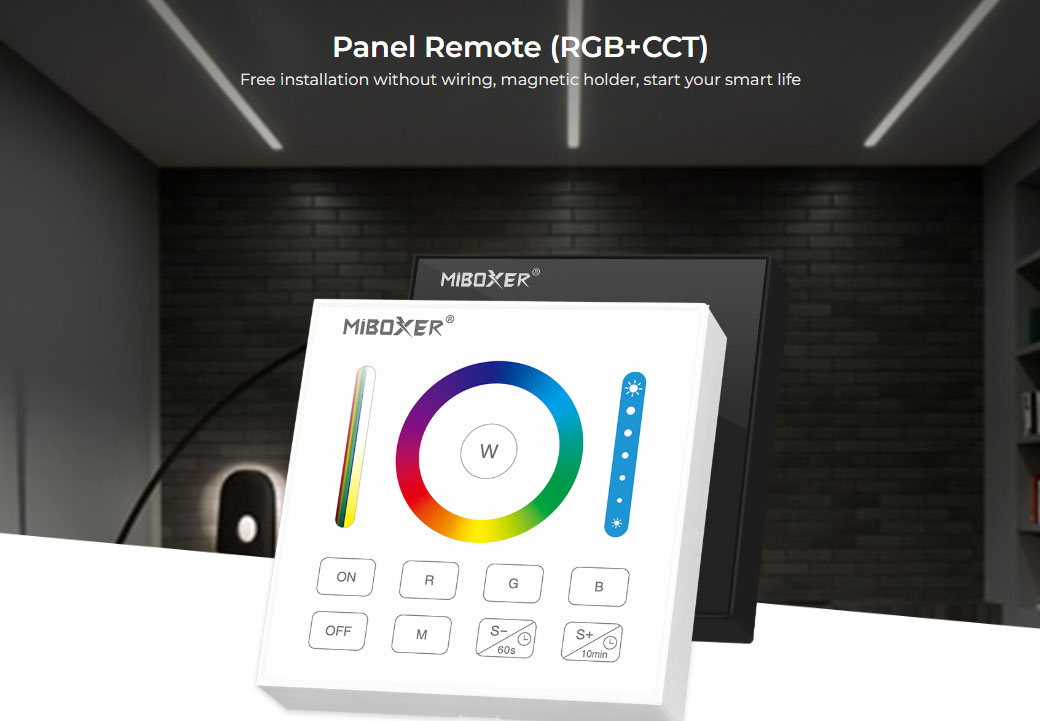

Product Name: Panel Remote (RGB+CCT)
Model No.: B0 (White)
Working Voltage: 3V (AAA * 2PCS)
Standby Power Consumption: 20µA
Transmitting Power: 6dBm
RF: 2.4GHz
Control Distance: 30m
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Working Temperature: -10~40°C
















| Water Resistance | IP20 Non Waterproof |
|---|---|
| LED Strips Compatibility | RGBCCT |
| Zones | 1 Zone |
| Power by | Battery |
| Body colour | White lacquered Ral 9016 |
| Shape | Square / Cube |
| Light Built In | No |
