LED Touch Panel Switch • RGB+CCT LED Strip • MiBoxer • Dimmer • 1 zone • 2.4G • Wireless • Smart Lighting System • B0-B • 2xAAA

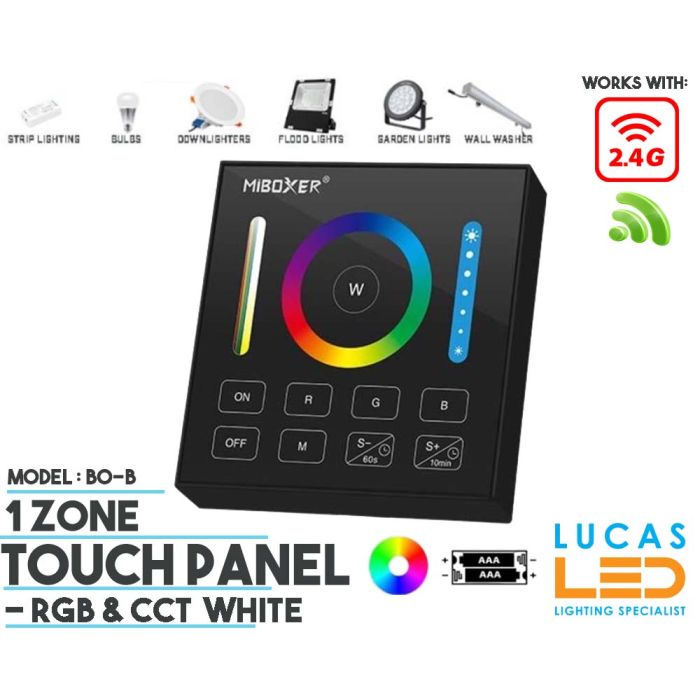

Wall mounted controller RGB+CCT 1-zone 2xAAA B0B
RGB CCT LED • Touch Panel Switch • Dimmer • MiBoxer • B0-B • 1 zone • 2.4G • Wireless • Smart • 2xAAA •
Wall mounted single Zone Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037 , RGBW controllers FUT038 , CCT controllers FUT035 & Single controllers FUT036.
RGB & CCT LED Controller:
This Touch Panel working on 2 xAAA batteries , and communicate by radio Signal 2.4Ghz . That mean Panel be catch all controllers to 30 , and can be completly at different location than your LED strips lighting , eg. Wall Panel is installed by doors ,and your Controller for a strips lighting can be at others location in room , with each zone reqiured One controller.
Specifications:

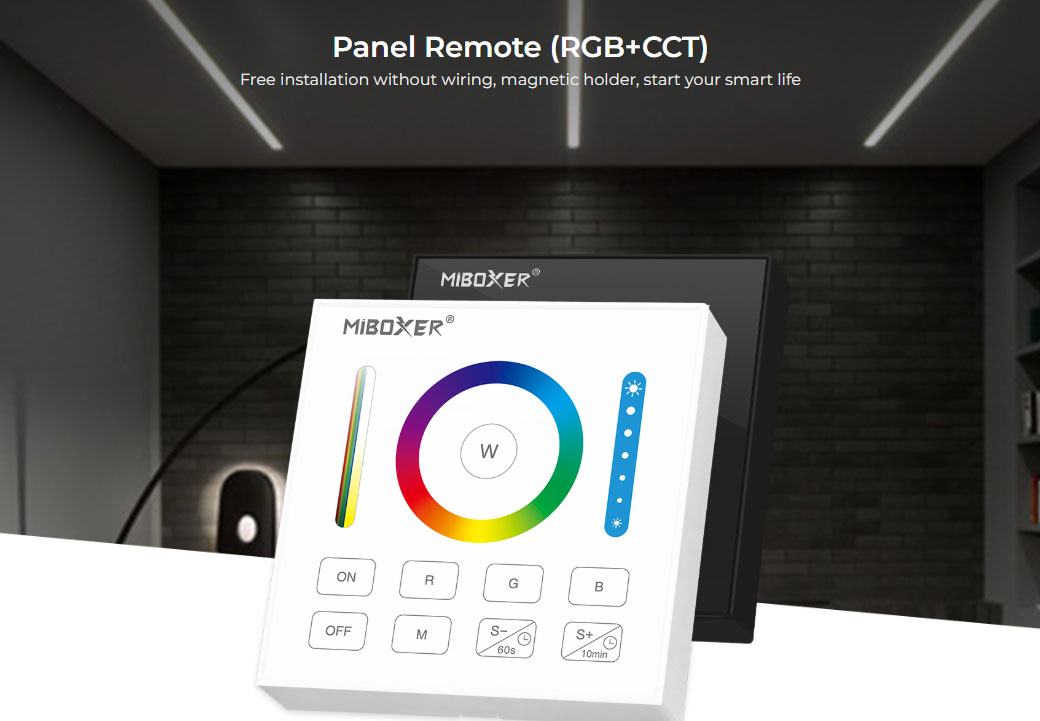

Product Name: Panel Remote (RGB+CCT)
Model No.: B0-B (Black)
Working Voltage: 3V (AAA * 2PCS)
Standby Power Consumption: 20µA
Transmitting Power: 6dBm
RF: 2.4GHz
Control Distance: 30m
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Working Temperature: -10~40°C
| Water Resistance | IP20 Non Waterproof |
|---|---|
| LED Strips Compatibility | RGBCCT |
| Zones | 1 Zone |
| Power by | Battery |
| Body colour | Black Matt |
| Shape | Square / Cube |
| Light Built In | No |
