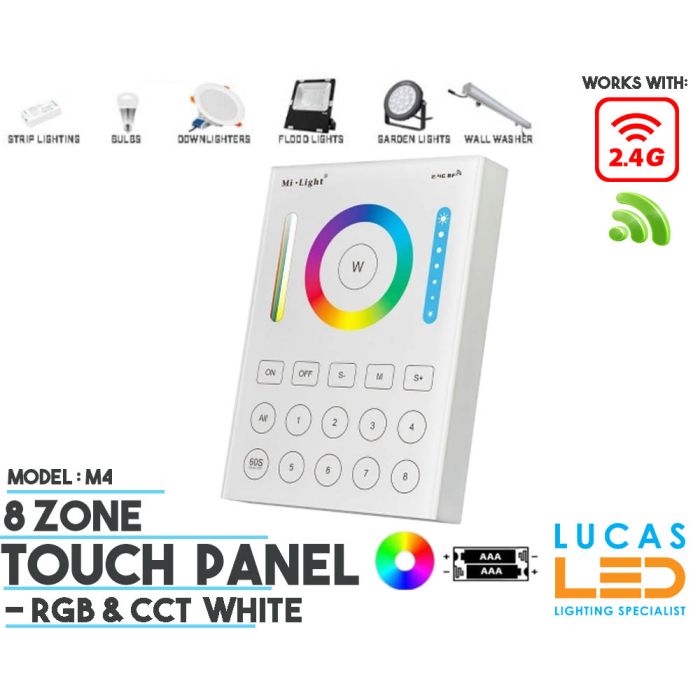

LED Touch Panel Switch • RGB+CCT • MiBoxer • 8 zone • 2.4G • Wireless • Compatible • Smart Lighting System • MultiZone • B8
Wall mounted controller RGB+CCT 8-zone 2xAAA B8
RGB & CCT Color Adjust Smart Touch Panel Remote Controller • MiLight 8 Zone B8 • Wall mounted • 2xAAA •
Wall mounted 8 Zone Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037 , RGBW controllers FUT038 , CCT controllers FUT035 & Single controllers FUT036.
RGB & CCT LED Controller:

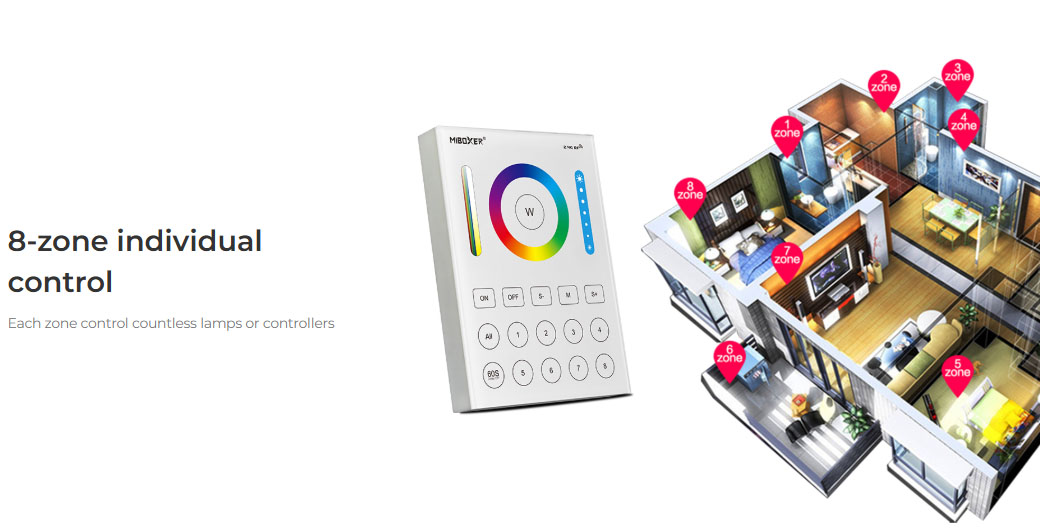

This Touch Panel working on 2 xAAA batteries , and communicate by radio Signal 2.4Ghz . That mean Panel be catch all controllers to 30 , and can be completly at different location than your LED strips lighting , eg. Wall Panel is installed by doors ,and your Controller for a strips lighting can be at others location in room up to 8 zone , with each zone reqiured One controller.
Application :
Depending of Application with multi Zone Panel u can control every lighting system & Colors.Let say :
1.Warm White single color (Kitchen Cabinet)
2. RGB ( cieling edge)
3. E27 Bulb RGB CCT (Pendant)
4. GU10 Spotlight RGB CCT.


Specifications:

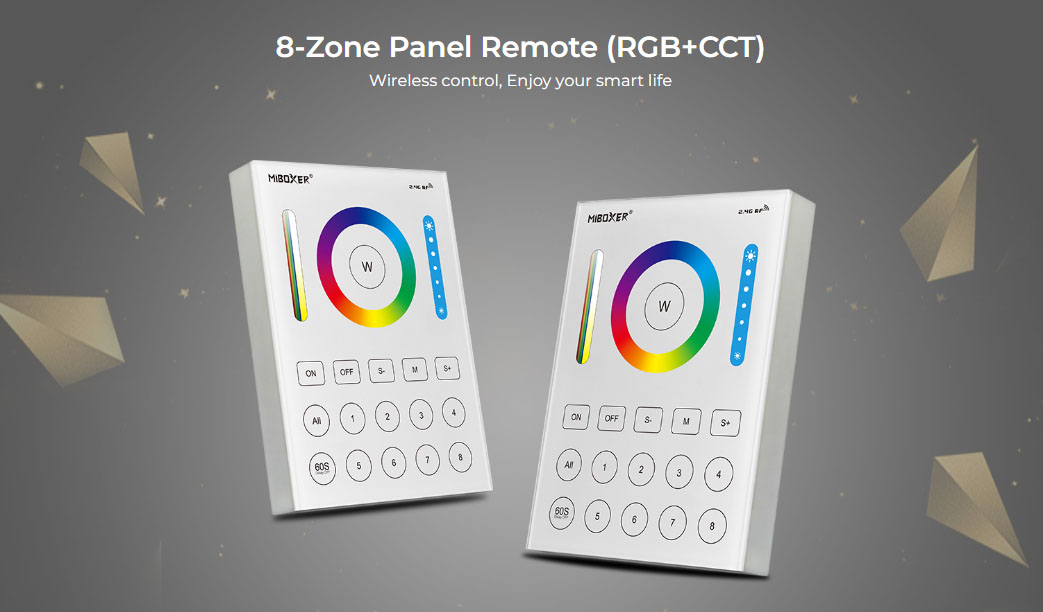

Product Name: 8-Zone Panel Remote (RGB+CCT)
Model No.: B8
Working Voltage: 3V (AAA * 2PCS) / DC3.3V
Standby Power Consumption: 30µA
Transmitting Power: 6dBm
RF: 2.4GHz
Control Distance: 30m
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Working Temperature: -20~60°C




















| Water Resistance | IP20 Non Waterproof |
|---|---|
| LED Strips Compatibility | RGBCCT |
| Zones | 8 Zone |
| Power by | 230V |
| Body colour | White lacquered Ral 9016 |
| Shape | Square / Cube |
| Light Built In | No |
