LED Touch Panel Switch • RGB & RGBW • MiBoxer • 4 zone • 2.4G • Wireless • Compatible • Smart Lighting System • MultiZone • T3

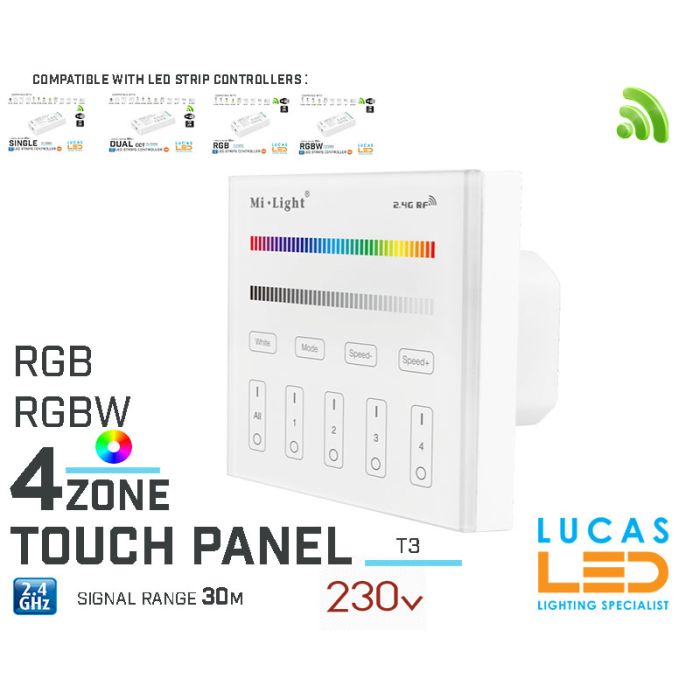

Wall mounted controller RGB/RGBW 4-zone 230V T3
RGBW Adjust Smart Touch Panel Remote Controller • MiLight 4 Zone T3 • Wall mounted • 230V •
Wall mounted 4 Zone Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037, RGBW controllers FUT038, CCT controllers FUT035 & Single controllers FUT036.
RGB & White Color LED Controller:

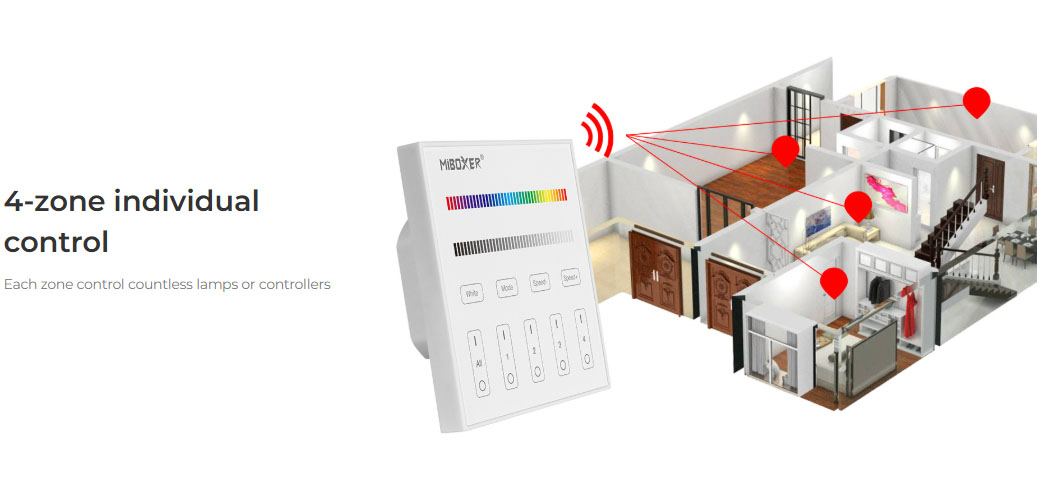

This Touch Panel working on 230V , and communicate by radio Signal 2.4Ghz . That mean Panel be catch all controllers to 30 , and can be completly at different location than your LED strips lighting , eg. Wall Panel is installed by doors ,and your Controller for a strips lighting can be at others location in room up to 4 zone , with each zone reqiured One controller.
Application :
Depending of Application with multi Zone Panel u can control every lighting system & Colors.Let say :
1. Warm White (Kitchen Cabinet)
2. RGB ( cieling edge)
3. E27 Bulb RGBW (Pendant)
4. GU10 Spotlight RGBW.


Specifications:

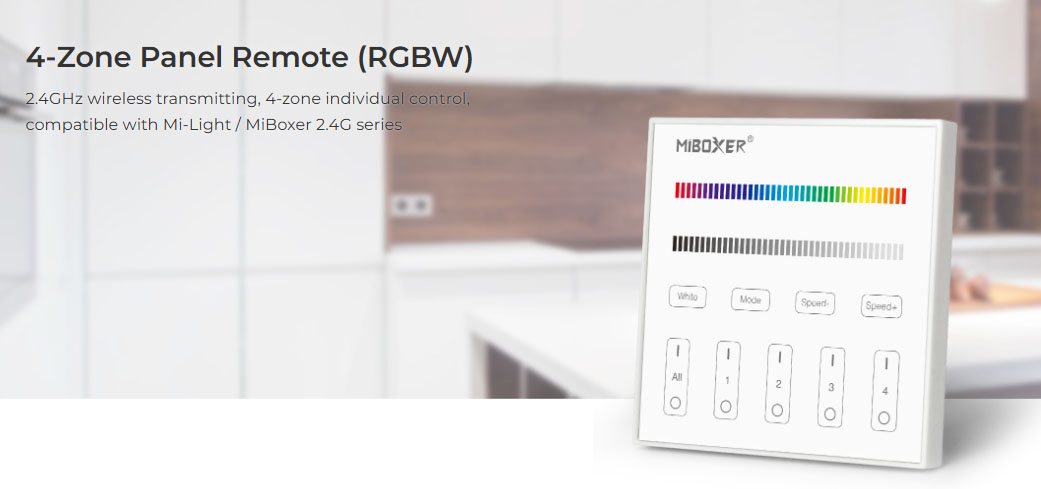

Product Name: 4-Zone Panel Remote (RGBW)
Model No.: T3
Working Voltage: AC100~240V
Standby Power Consumption: 0.15W
Transmitting Power: 6dBm
RF: 2.4GHz
Control Distance: 30m
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Working Temperature: -10~40°C














| Water Resistance | IP20 Non Waterproof |
|---|---|
| LED Strips Compatibility | RGBW |
| Zones | 4 Zone |
| Power by | 230V |
| Body colour | White lacquered Ral 9016 |
| Shape | Square / Cube |
| Light Built In | No |
