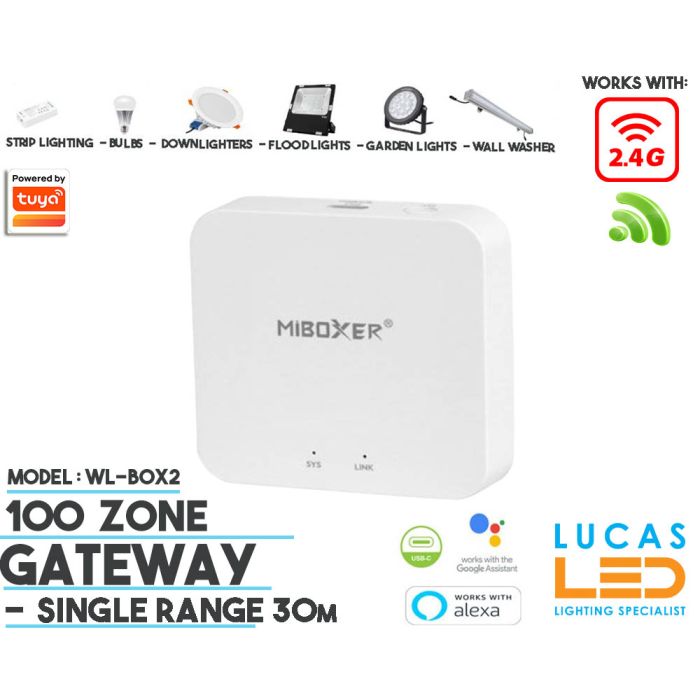

Gateway Router • WiFi Controller • Mi-Boxer • 100 zone • WiFi • 2.4 G • Wireless • Smart Lighting System • MultiZone • WL-Box2
WL-Box2 Gateway HUB • Powered by Tuya App • Mi-Boxer • 100 zone • MultiZone Smart Lighting System • 2.4 Ghz • 5V USB
Compatible with 2.4GHz RF products and controlled by MiBoxer APP through 2.4G RF network. Support Amazon Alexa and Google assistant control. Already fully tested at Us Workshop & Using as main Lighting system operated by Tuya App from phone & tablet.
TECHNICAL DATA:
Product Name: 2.4GHz Gateway
Model No.: WL-Box2
Input: DC5V/500mA (Type-C)
Trasmitting Power: 6dBm
RF: 2.4GHz
RF Control Distance: 30m
Working Temperature: -10~40°C
Wireless Technology: WiFi-IEEE 802.11b/g/n 2.4GHz
APP remote control all group devices
100 zones can be controlled individually; Custom edit zone name (Zone1-Zone16)
Compatible with MiBoxer series 2.4GHz products

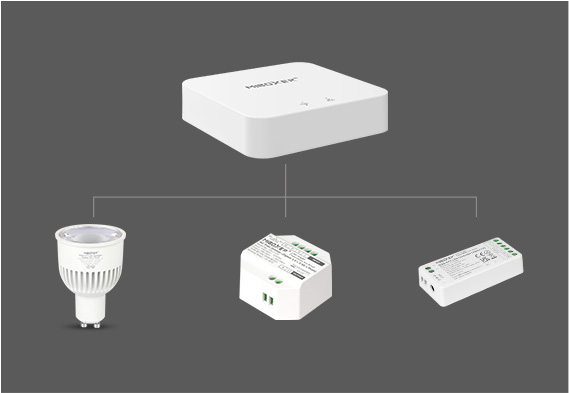

This MiBoxer gateway can be used with 2.4GHz lamps, controllers, triac and other devices to experience more functions.
Support third party voice control
Step 1
Download "Tuya Smart" app
Step 2

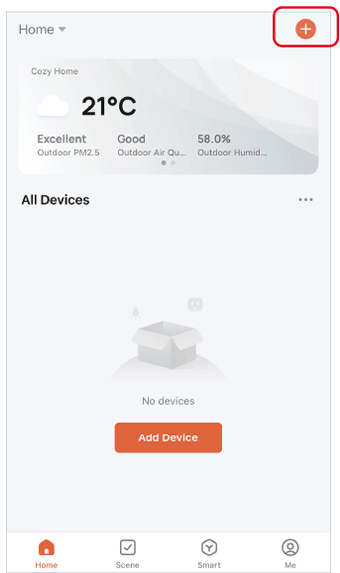

On the home page, touch " + " icon in the upper right corner

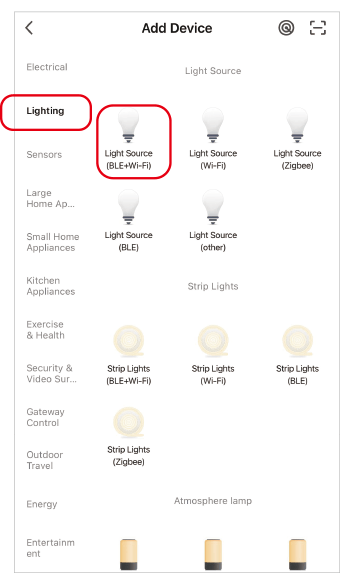

Step 3
Touch "Lighting" and select "Light Source (BLE+WiFi)"

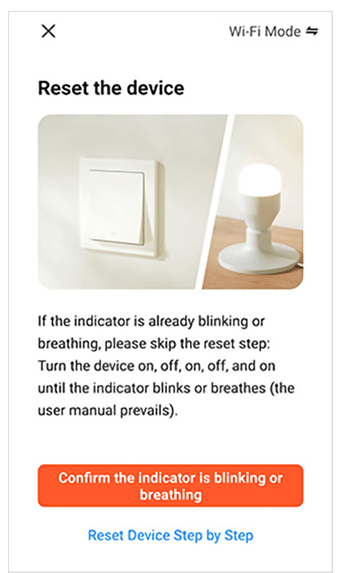

Step 4
The gateway indicator flashes red, if not, press and hold " SET " button for 3 seconds

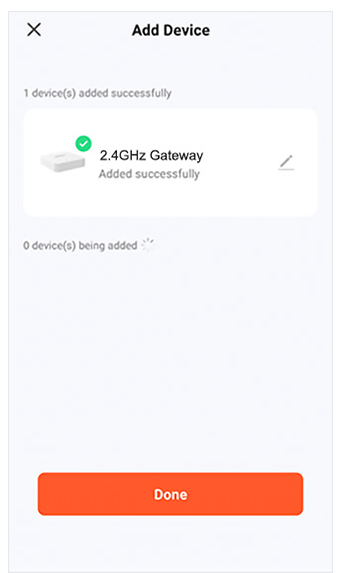

Step 5
The gateway completes the match, touch "Done"

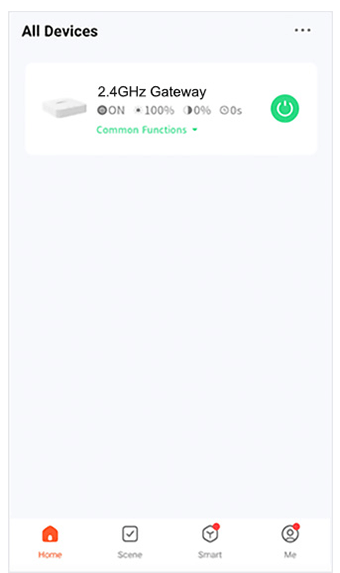

Step 6
Match the code with the device, smart control
| Water Resistance | IP20 Non Waterproof |
|---|---|
| Body colour | Other colours |
| Shape | Rectangle |
| Light Built In | No |
