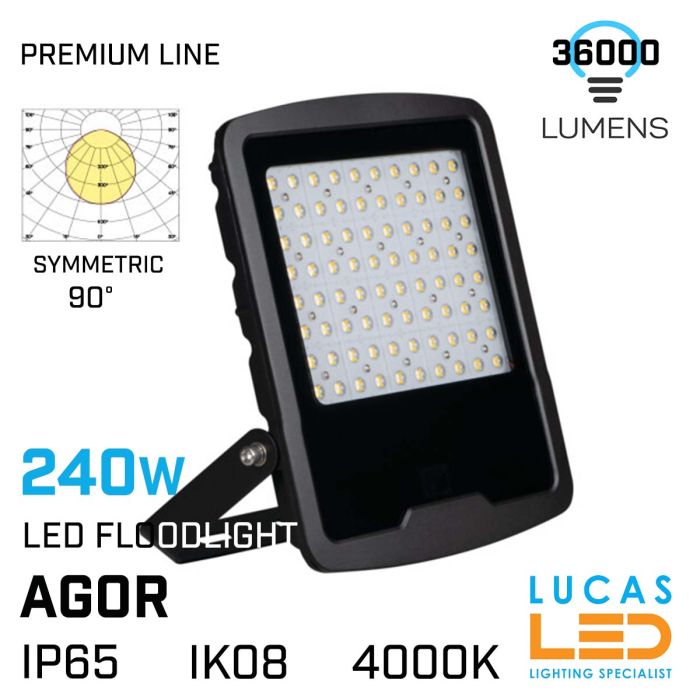

Outdoor LED Floodlight 240W - 4000K Natural White - 36000lm - IP65 waterproof - SYMMETRIC - LED SMD - AGOR

240W Outdoor LED Floodlight - 4000K Natural White - brightness 36000 lumens - IP65 waterproof - IK08 -  surface ceiling &  wall  mounted - SYMMETRIC LED SMD light - beam angle 90° - AGOR.

Suitable for : Commercial offices, Sports &  Industrial area, Parkings area, Hotels, Restaurants, Pubs, Gardens, Patios, Garages...etc

AGOR HI LED floodlights have two high power options: 240W and 300W. These floodlights are available in two versions: FL AGOR HI (symmetrical), FL AGOR/A HI (asymmetrical) with a 5-year warranty. AGOR LED HI is a professional product, we took care of protection against over voltage (6kV), high tightness (IP65) and resistance to mechanical damage (IK08). An additional advantage is very high efficiency: up to 150lm/W.  Luminaires are designed to illuminate larger industrial, commercial and recreational areas. An additional safety accessory is a protective grid.

TYPE OF LIGHT SOURCE:

Lighting technology used: LED
Non-directional or directional light source: DLS
Mains or non-mains light source: MLS
Connected light source (CLS): no
Colour-tuneable light source: no
High luminance light source: no
Anti-glare shield: no
Dimmable: no

PRODUCT PARAMETERS:

Colour: black
Place of assembly: wall mounted, ceiling mounted, surface mounted
Place of application: outdoors
Minimum distance from the illuminated object: 1m
Compatible with a dimmer: no
Width [mm]: 385
Height [mm]: 470
Depth [mm]: 51
Mercury content: no
Integrated LED light source: yes
Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Power factor: 0.98
Maximum power [W]: 240
Class of protection against electric shock: I
Diode type: LED SMD
Luminous flux [lm]: 36000
Colour temperature: white
Service life [h]: 50000
Number of on/off cycles: ≥50000
Lighting angle [°]: 90
Ambient temperature range to which the product can be exposed: -20÷45
Enclosure material: aluminum alloy
Protective glass material: Tempered glass
Connection type: Free cable ends
Wire type: H05RN-F
Wire length [m]: 0.28
Wire diameter [mm²]: 1
Lamp-heating time [s]: ≤0,5
Lamp-ignition time [s]: ≤0,5
The fixture is movable vertically [°]: 180
IK class: 08
IP class: 65

PARAMETERS FOR DIRECTIONAL LIGHT SOURCES:

Peak luminous intensity [cd]: 17045
Beam angle [°]: 90

PARAMETERS FOR LED AND OLED LIGHT SOURCES:

Energy consumption in on-mode of the light source (kWh/1000h): 240
Energy efficiency class: D
Useful luminous flux of the light source Φuse [lm]: 28800
Useful luminous flux of the light source Φuse [lm]: in wide cone (120°)
Correlated colour temperature [K]: 4000
Colour consistency in McAdam ellipses: ≤6
On-mode power of the light source Pon [W]: 240
Height of the light source [mm]: 470
Width of the light source [mm]: 385
Depth of the light source [mm]: 51
Colour rendering index: 70
Chromaticity coordinates (x): 0,38
Chromaticity coordinates (y): 0,38
R9 colour rendering index value: -29
Survival factor: 0,9
The lumen maintenance factor: 0.96

PARAMETERS FOR LED AND OLED MAINS LIGHT SOURCES:

Displacement factor (cos φ1): 0.98
LED light source replaces a fluorescent light source without integrated ballast of a particular wattage: Not applicable
Flicker metric (Pst LM): 1,0
Stroboscopic effect metric (SVM): 0,4
