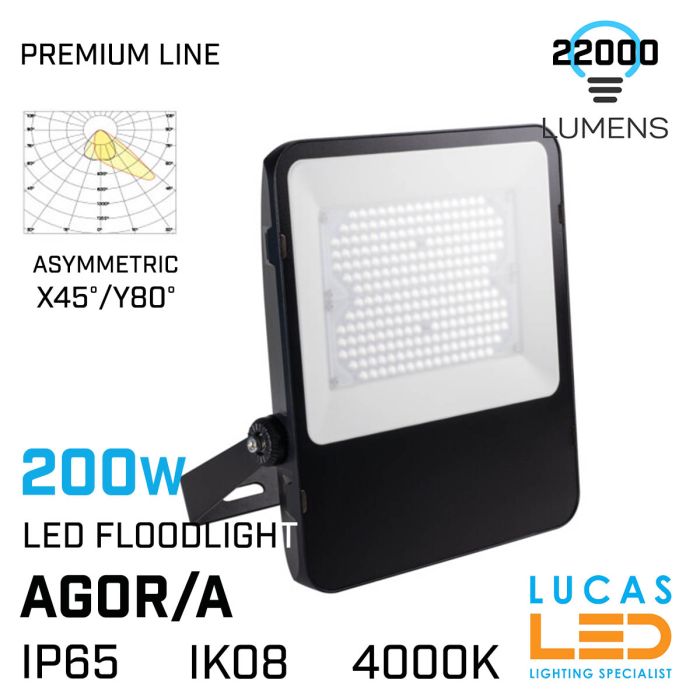

200W Outdoor LED Floodlight - 4000K Natural White - 22000lm - IP65 waterproof - ASYMMETRIC - LED SMD - AGOR/A

Outdoor / Indoor LED Floodlight 200W - 4000K - 22000lm - IP65 - ceiling - wall -mounted- ASYMMETRIC - LED SMD light - for building facades-industrial areas-warehouses - AGOR/A

AGOR LED is a series of high-power floodlights. Their solid and durable construction ensures IP65 tightness. AGOR floodlights are also symmetrical (AGOR) or asymmetrical light distribution (AGOR/A). You will successfully use them to illuminate sports or industrial areas, large advertising boards, warehouses and building facades. The durability and reliability of AGOR floodlights is confirmed by a 5-year warranty.

TYPE OF LIGHT SOURCE:

Lighting technology used: LED
Non-directional or directional light source: DLS
Mains or non-mains light source: MLS
Connected light source (CLS): no
Colour-tuneable light source: no
High luminance light source: no
Anti-glare shield: no
Dimmable: no

PRODUCT PARAMETERS:

Colour: black
Place of assembly: wall mounted, ceiling mounted
Place of application: Indoors and outdoors
Minimum distance from the illuminated object: 1m
Compatible with a dimmer: no
Replaceable light source: no
Mercury content: no
Integrated LED light source: yes
Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Power factor: 0.9
Maximum power [W]: 200
Class of protection against electric shock: I
Diode type: LED SMD
Luminous flux [lm]: 22000
Colour temperature: white
Service life [h]: 50000
Number of on/off cycles: ≥25000
Lighting angle [°]: X45/Y80
Ambient temperature range to which the product can be exposed: -40÷35
Enclosure material: aluminum alloy
Protective glass material: Tempered glass
Connection type: Free cable ends
Wire type: H05RN-F
Wire diameter [mm²]: 1
Reflector type: asymmetric
Lamp-heating time [s]: ≤0,5
Lamp-ignition time [s]: ≤0,5
The fixture is movable vertically [°]: 180
IP class: 65
GENERAL PRODUCT PARAMETERS:
Energy consumption in on-mode (kWh/1000h): 200
Energy efficiency class: E
Useful luminous flux Φuse [lm]: 19700
Useful luminous flux Φuse [lm]: in narrow cone (90°)
Correlated colour temperature [K]: 4000
On-mode power Pon [W]: 200
Height [mm]: 410
Width [mm]: 355
Depth [mm]: 60
Colour rendering index: 80
Chromaticity coordinates (x): 0.38
Chromaticity coordinates (y): 0.38

PARAMETERS FOR DIRECTIONAL LIGHT SOURCES:

Beam angle [°]: 80

PARAMETERS FOR LED AND OLED LIGHT SOURCES:

R9 colour rendering index value: 25
Survival factor: ≥0.9
The lumen maintenance factor: 0.96

PARAMETERS FOR LED AND OLED MAINS LIGHT SOURCES:

Displacement factor (cos φ1): 0.9
Colour consistency in McAdam ellipses: ≤6
LED light source replaces a fluorescent light source without integrated ballast of a particular wattage: Not applicable
Flicker metric (Pst LM): ≤1,0
Stroboscopic effect metric (SVM): ≤0,4
