Suspended LED Profile • ARCHITECTURAL • "DULIO" • SILVER • Aluminium • 2.02 Meters length • PRO • multi set •
From €132.96 €108.10
To €204.93 €166.61

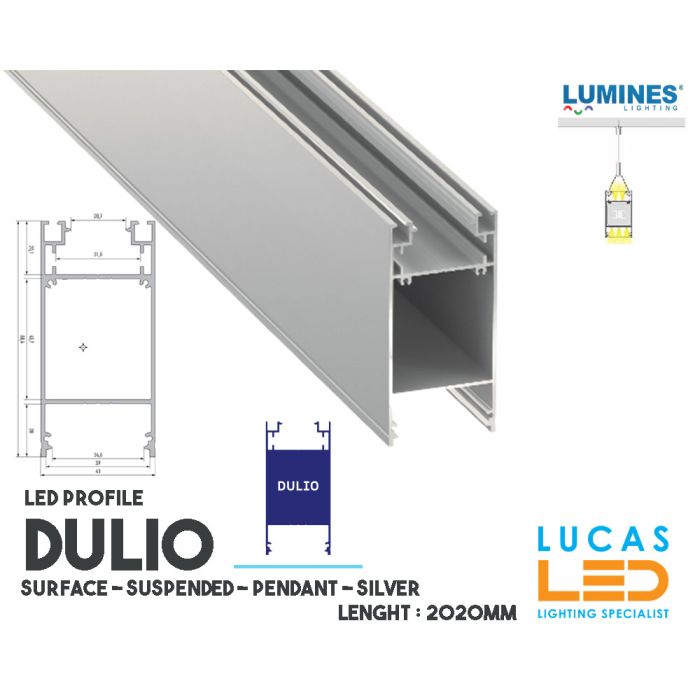

LED Profile • SUSPENDED • ARCHITECTURAL • "DULIO" • SILVER • Aluminium • 2.02 Meters length • PRO • multi set • channel for Led Strip lighting.
Led Profile DULIO is a surface-mounted profile – for household and office room illumination – to be used as a pendant lamp with a hidden power supply.
LED strip width:
• 5 x 12 mm
SPECIFICATIONS:
Color variations:
- anodized silver,
- lacquered white (RAL9016)
Mounting:
pendants - as a hanging lighting
Accessories
COVERS (diffusers):
- WIDE
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* frosted (PMMA)
* milky frosted (PMMA)
- DOUBLE (PMMA)
* transparent,
* milky,
* frozen,
* frosted,
* milky frosted
Mounted from the top, snap-on.
END CAPS:
aluminium caps without a hole in 2 color variations (white or silver)
OTHER ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°,
Y-type pendants
Profile is sold in standard lengths: 2020 mm.
There is a possibility of cutting the profiles to any size.
INSTALLATION DIAGRAM:
Installation instruction for profile DULIO with a hidden power supply using Y-type pendants, a WIDE cover and a DOUBLE cover
End result of assembly of profile DULIO with a hidden power supply using Y-type pendants, a WIDE cover and a DOUBLE cover
Assembly of DULIO profile as a pendant lamp
Assembly scheme for elements of the lighting system using profile DULIO and [1] WIDE cover, [2] DOUBLE cover, [3] LED strips, [4] end cap and [5] Y-type pendants
| Body colour | Silver anodised |
|---|---|
| Width | 43 |
| Depth & High | 88.4 |
| Max Strip Width | 34.6 |
-
