Special App LED Profile • ARCHITECTURAL • SURFACE • "CLARO" • SILVER • Aluminium • 2.02 Meters length • PRO • multi set •
From €100.38 €81.61
To €167.99 €136.58

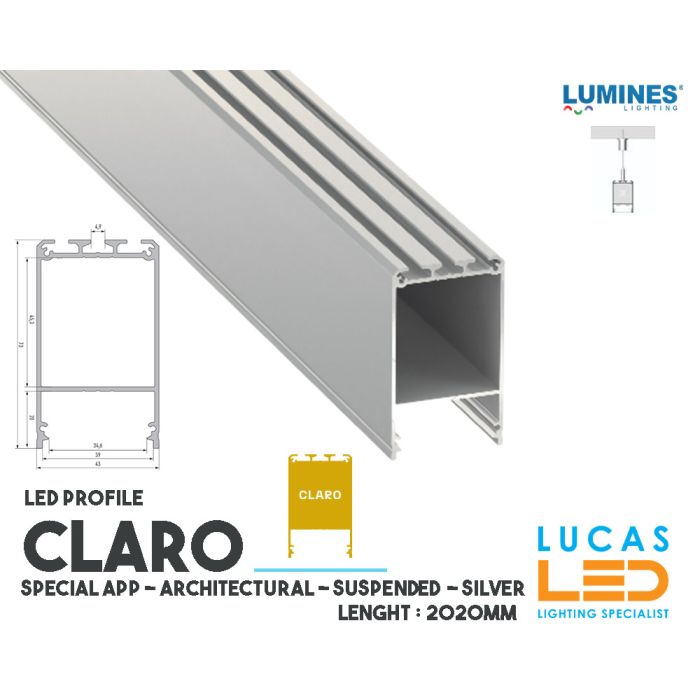

LED Profile • SPECIAL APP • ARCHITECTURAL • SURFACE • "CLARO" • SILVER • Aluminium • 2.02 Meters length • PRO • multi set • channel for LEd Strip lighting.
Led Profile CLARO is a surface-mounted profile – for household and office room illumination – to be used as a pendant lamp with a hidden power supply.
LED strip width:
3 x 12 mm
SPECIFICATIONS:
Color variations:
- anodized silver,
- lacquered white (RAL9016)
Mounting:
pendants - as a hanging lighting
Accessories
COVERS (diffusers):
- WIDE
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* frosted (PMMA)
* milky frosted (PMMA)
- PRISMATIC PC
* transparent (PC)
Mounted from the top, snap-on.
END CAPS:
aluminium caps without a hole in 2 color variations (white or silver)
OTHER ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°,
pendants
Profile is sold in standard lengths: 2020 mm.
There is a possibility of cutting the profiles to any size.
INSTALLATION DIAGRAM:
Installation instruction for profile CLARO with a hidden power supply using pendants and a WIDE cover
End result of assembly of profile CLARO with a hidden power supply using pendants and a WIDE cover
Assembly of CLARO profile as a pendant lamp
Assembly scheme for elements of the lighting system using profile CLARO and [1] WIDE cover, [2] LED strips, [3] end cap and [4] pendants
| Body colour | Silver anodised |
|---|---|
| Width | 43.00 |
| Depth & High | 73 |
| Max Strip Width | 34.6 |
-
