Surface LED Profile • "RETO" • BLACK • Aluminium • 2.02 Meters length • PRO • multi set •
From €66.68 €54.21
To €110.56 €89.89

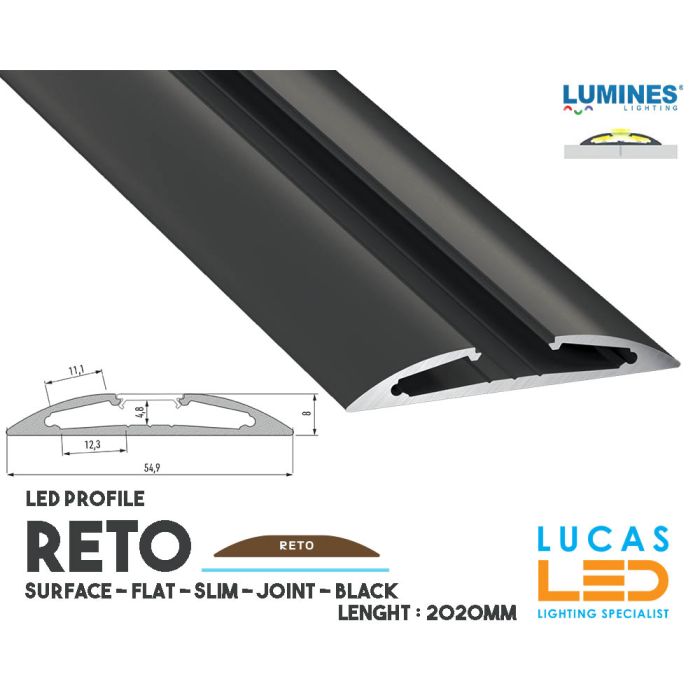

LED Profile • SURFACE • "RETO" • BLACK • Aluminium • 2.02 Meters length • PRO • multi set • channel for Led Strip lighting.
LED Profiles RETO is a surface profile with the possibility to adjust the lighting angle, using various end caps. To be used in the kitchen and household compartments.--
LED strip width:
• 2 x 10 mm
SPECIFICATIONS:
Color variations:
- anodized silver,
- anodized black,
- anodized inox,
- lacquered white (RAL9016)
Mounting:
two-sided adhesive tape,
mounting screws
ACCESSORIES
COVERS (diffusers):
- BASIC
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* frosted (PMMA),
* milky frosted (PMMA),
* lens 15 (PMMA),
* lens 30 (PMMA),
* black (PMMA)
Mounted from the top, snap-on.
END CAPS:
aluminium with or without a hole in 2 color variations (black, silver),
plastic with push-hole in 5 color variations (white, black, inox, silver, gray),
aluminium with support 15°/30°, with or without a hole in silver
Profile is sold in standard lengths: 2020 mm.
There is a possibility of cutting the profiles to any size.-
INSTALLATION DIAGRAM:
Installation instruction for profile RETO with a BASIC cover using mounting screw
End result of the installation of profile RETO with a BASIC cover using mounting screw
Installation instruction for profile RETO with a BASIC cover using double-sided tape
End result of the installation of profile RETO with a BASIC cover using double-sided tape
Installation of RETO profile using (1) end caps at 30 degrees, (2) end caps at 15 degrees, (3) end caps at 0 degrees
Assembly of RETO profile. Top view
Assembly scheme for elements of the lighting system using RETO profile and (1) a BASIC cover (2) two LED strips, (3) an end cap without hole, (3a) an end cap with hole, (4) and mounting screws
Assembly scheme for elements of the lighting system using RETO profile at 30 degrees and (1) a BASIC cover, (2) two LED strips, (3) an end cap with support at 30 degrees without a hole (3a) an end cap with support at 30 degrees and with hole and (4) mounting screws
| Body colour | Black Matt |
|---|---|
| Width | 54.9 |
| Depth & High | 8 |
| Max Strip Width | 4.8 |
-
