Surface LED Profile • DUAL • BLACK • Aluminium • 2.02 Meters length • PRO • multi set •
From €28.88 €23.48
To €55.81 €45.37

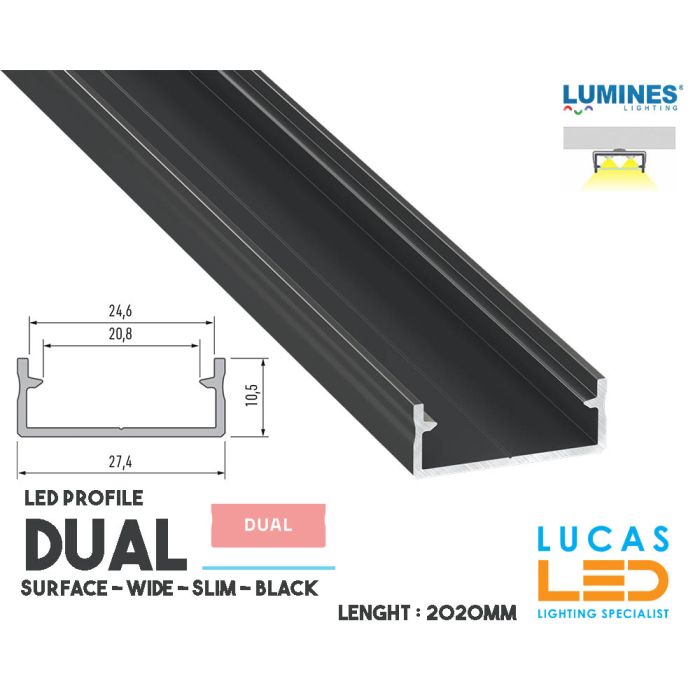

LED Profile • SURFACE • DUAL • BLACK • Aluminium • 2.02 Meters length • PRO • multi set • channel for Led Srip Lighting.
Led Profile LOGI are surface profiles. Designed for the decorative and wall lighting or for the cove LED lighting.
LED strip width:
2 x 12 mm
SPECIFICATIONS:
Color versions:
- raw aluminium,
- black anodized profile,
- silver anodized profile,
- inox anodized profile,
- white lacquered profile (RAL9016)
Mounting methods:
- doube-sided adhesive tape,
- mounting glue,
- pendants (as a pendant lamp)
Accessories for the LUMINES DUAL aluminum profile
COVERS:
- DOUBLE
* transparent (PMMA),
* frozen (PMMA),
* milky (PMMA),
* milk frosted (PMMA),
* black (PMMA)
Click-in mounted.
END CAPS:
- plastic with a push-hole in 4 color variants (white, black, inox and grey)
ADDITIONAL ACCESSORIES:
- metal mountign clip DUAL
- contactless switch
The profile is available in standard lengths: 2020 mm.
It is possible to cut profiles to any size.
INSTALLATION DIAGRAM:
Installation instructions for profile DUAL with DOUBLE cover using a double-sided adhesive tape
The result of installation of profile DUAL with DOUBLE cover using a double-sided adhesive tape
Installation instructions for profile DUAL with DOUBLE cover using a mounting clip
The result of installation of profile DUAL with DOUBLE cover using a mounting clip
Diagram of assembly of the elements of the lighting system using the DUAL profile and (1) a DOUBLE cover, (2) LED strips, (3) push-hole end caps.
| Body colour | Black Matt |
|---|---|
| Width | 27.4 |
| Depth & High | 10.5 |
| Max Strip Width | 20.8 |
-
