Zigbee 3.0 • RGB + CCT • 30W • 1800LM • MiBoxer • Beam Angle 36° • TS5-30B-ZR
Zigbee 3.0 • RGB + CCT • 30W • 1800LM • MiBoxer • Beam Angle 36° • TS5-30B-ZR

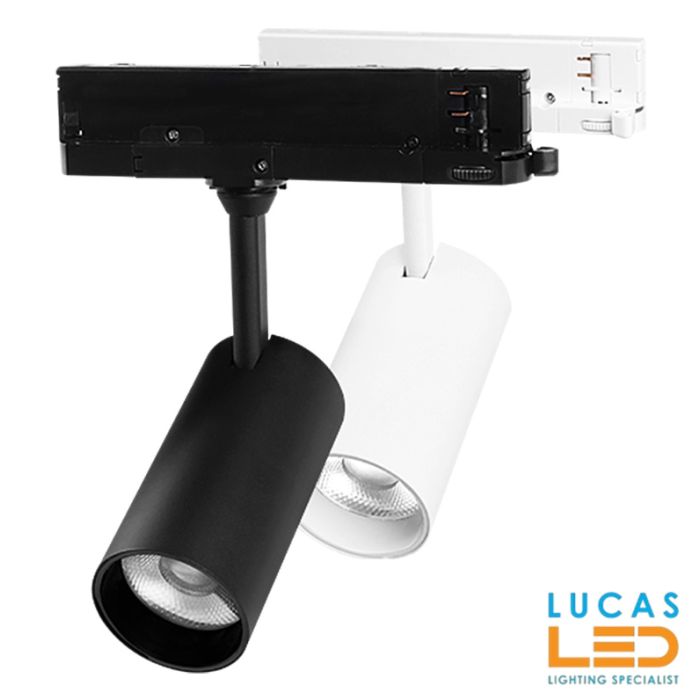

The TS5-30B-ZR is a 30W smart track spotlight that combines full-color RGB lighting with tunable white (2700K–6500K), allowing dynamic and precise control over ambiance and brightness. Designed with a 36° beam angle and a high CRI over 90, it delivers focused, vivid illumination—ideal for retail, residential, or gallery use.

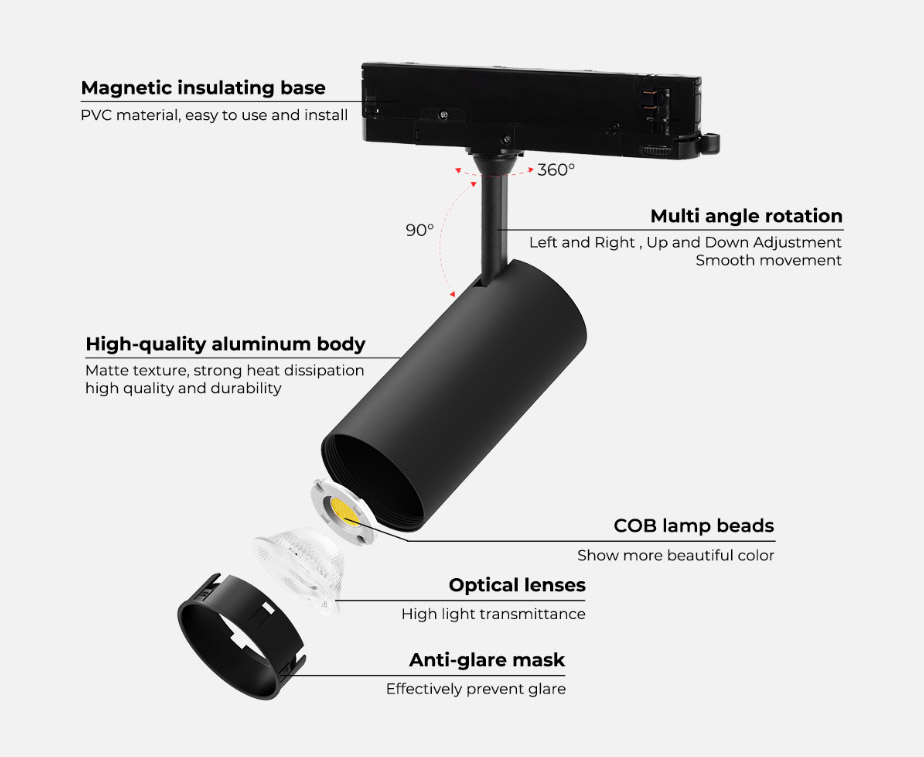

Equipped with dual control options, it supports Zigbee 3.0 and 2.4GHz RF, ensuring smooth integration with smart home systems such as Tuya, Philips Hue, and Amazon Echo. The sleek black aluminum housing offers a modern look with efficient heat dissipation and long-lasting performance.

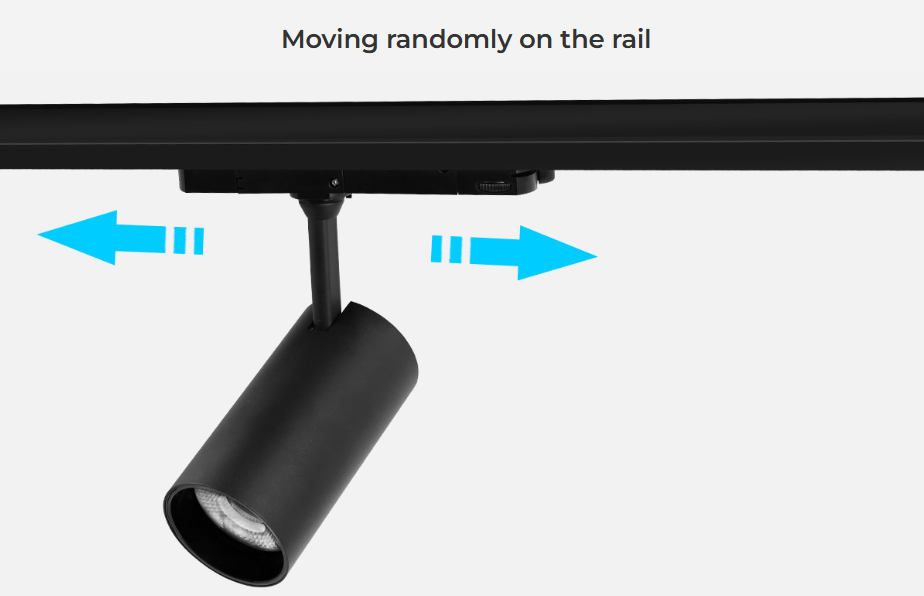

A versatile and powerful choice for smart, customizable lighting on standard track systems.
SPECIFICATIONS:

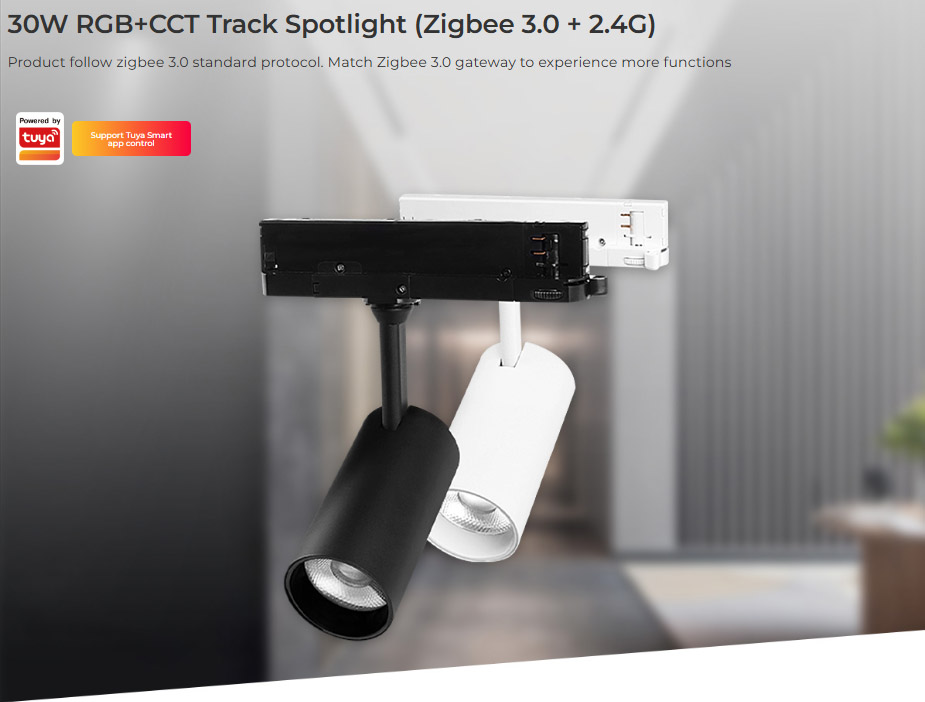

Product Name: 30W RGB+CCT Track Spotlight (Zigbee 3.0 + 2.4G)
Model No.: TS5-30B-ZR
Input Voltage: 100-240V~ 50/60Hz
Power: 30W
PF: >0.9
CRI: >80
Color Temperature: 2700K~6500K
Luminous Flux: 1800LM
Luminous Efficiency: 63LM/W
Beam Angle: 36°
Communication Protocol: Zigbee 3.0 + 2.4GHz

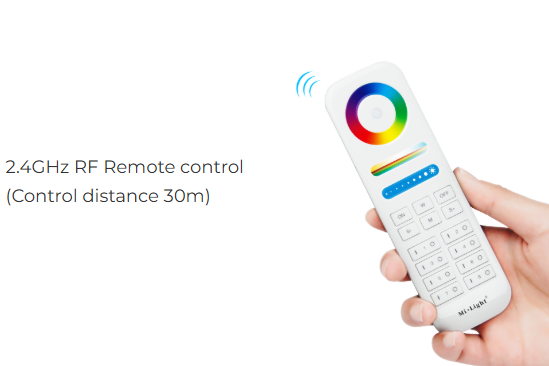

Control Distance: Zigbee: 50m (open area) / 2.4G RF Remote: 30m
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400-2.480GHz

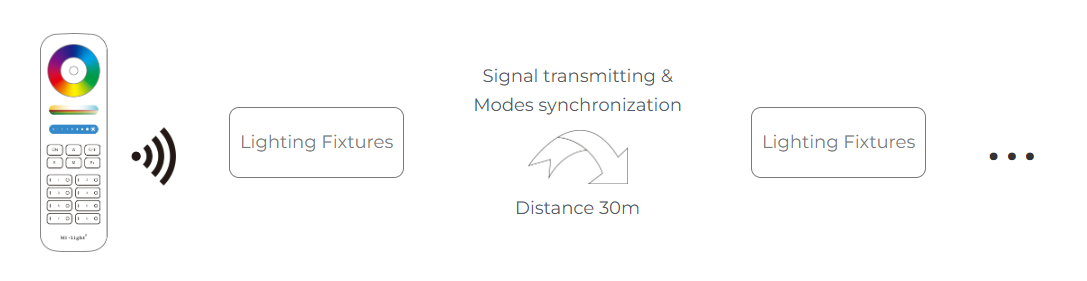

Signal Transmitting
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
| Light Built In | No |
|---|
