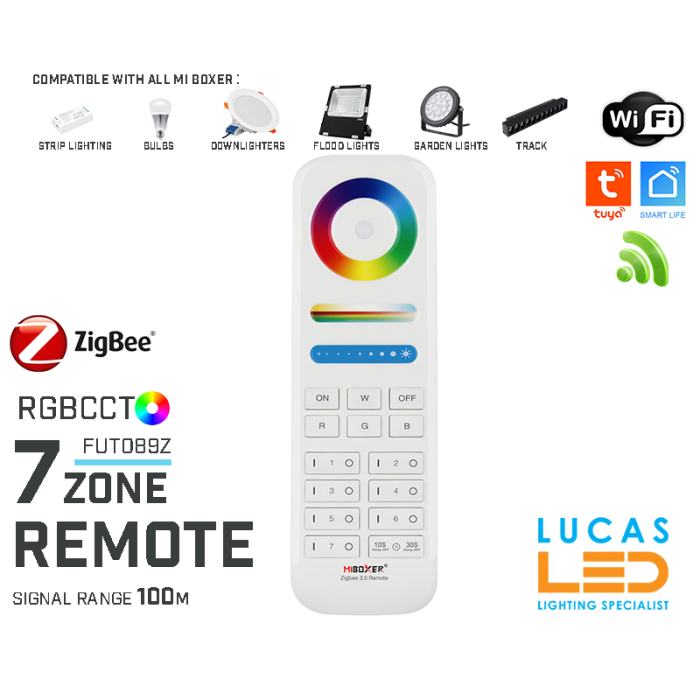

Zigbee 3.0 Remote Control • RGB+CCT • MiBoxer • 7 Zone • 2.4G • Wireless • WiFi • Compatible • Smart Lighting System • FUT089Z
Remote controller RGB+CCT 8-zone 2xAAA Zigbee FUT089Z
RGBCCT Zigbee 3.0 Remote Control • MiBoxer • FUT089Z • 8 Zone • 2.4G • Compatible • Smart System •
Application :
Depending of Application with multi Zone Panel u can control every lighting system & Colors.Let say :
1.Warm White (Kitchen Cabinet)
2. RGB ( cieling edge)
3. E27 Bulb RGB-CCT (Pendant)
4. GU10 Spotlight RGB-CCT.
An advanced remote control designed for RGB + CCT light sources, allows you to control 8 zone, but can work with many Milight controllers at once. Works with WiFi Milight router - controlled by an application on your smartphone.
Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037 , RGBW controllers FUT038 , CCT controllers FUT035 & Single controllers FUT036.
RGB & CCT LED Controller:

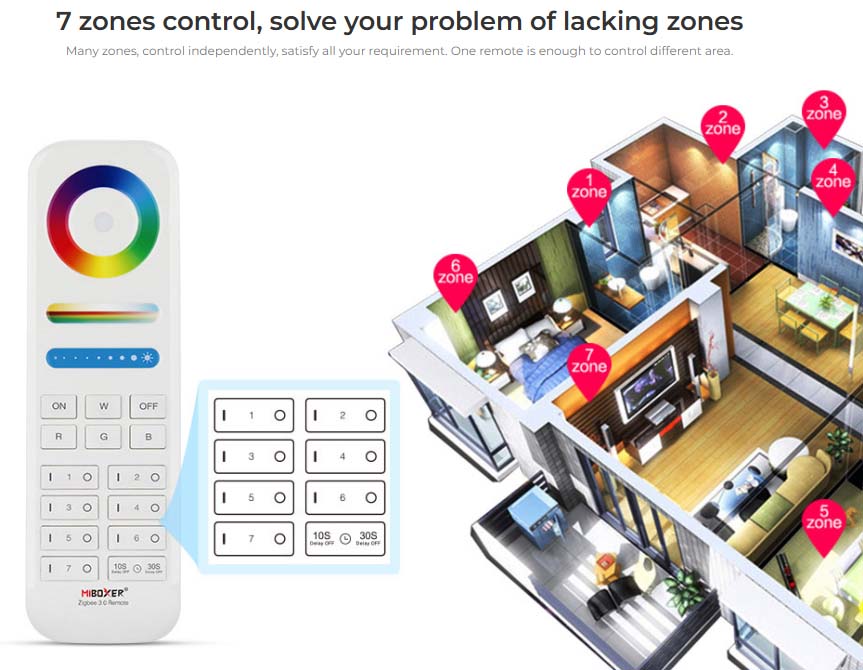

This Touch Remote with LED Strips Controllers up to 8 zone , and communicate by radio Signal 2.4Ghz . That mean Remote can catch all controllers to 30 , and can be completly at different location than your LED strips lighting , eg. is installed by doors ,and your Controller for a strips lighting can be at others location in room up to 8 zone , with each zone reqiured One controller.


SPECIFICATIONS:

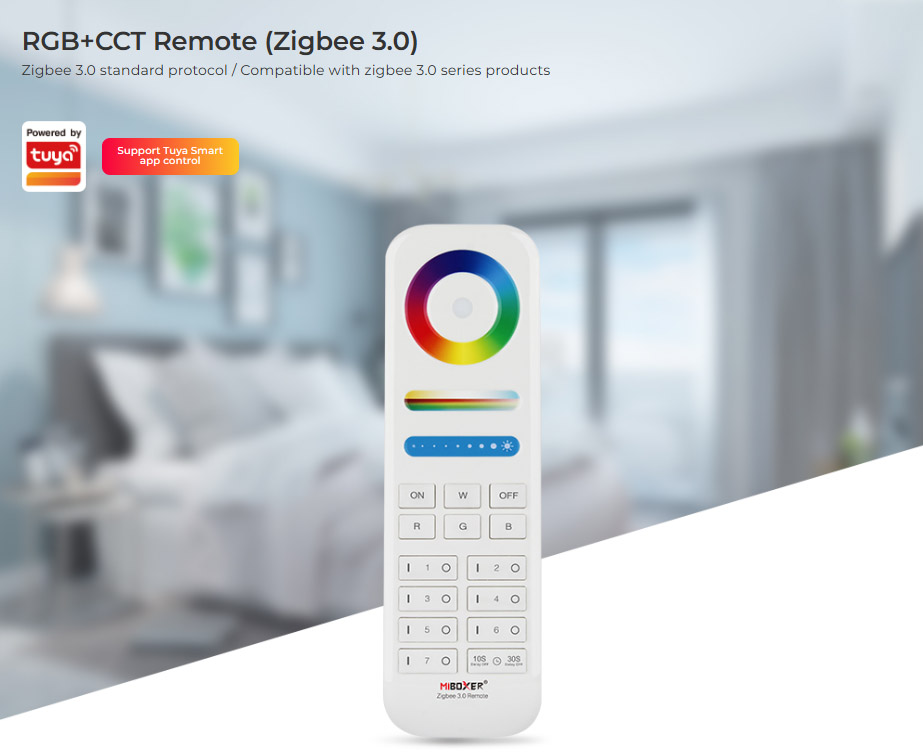

Product Name: RGB+CCT Remote (Zigbee 3.0)
Model No.: FUT089Z
Working Voltage: 3V (AAA * 2PCS)
Standby Power Consumption: 20µA
Transmitting Power: 10dBm
Communication Protocol: Zigbee 3.0
Control Distance: 100m (open area)
Max Controllable Lights: 25 Pcs
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
















| Water Resistance | IP20 Non Waterproof |
|---|---|
| LED Strips Compatibility | RGBCCT |
| Power by | Battery |
| Body colour | White lacquered Ral 9016 |
| Shape | Rectangle |
| Light Built In | No |
