SPI Addressable Digital LED Strip Controller • 5 in 1 SPI + DMX LED • WiFi+2.4GHz • SINGLE - CCT - RGB - RGBW -RGBCCT • 5-24V • DMX / SPI Output •
SPI LED Strip Controller • 5 in 1 SPI + DMX LED • WiFi+2.4GHz • Single color - RGB - RGBW • Control Distance 30m • Simple Installation • White Body •
Ideal for: Living Rooms, Bedroom, Kitchens, Home Offices, Smart Homes, Conference Room, Beauty Saloon, Restaurants, Pubs, etc...

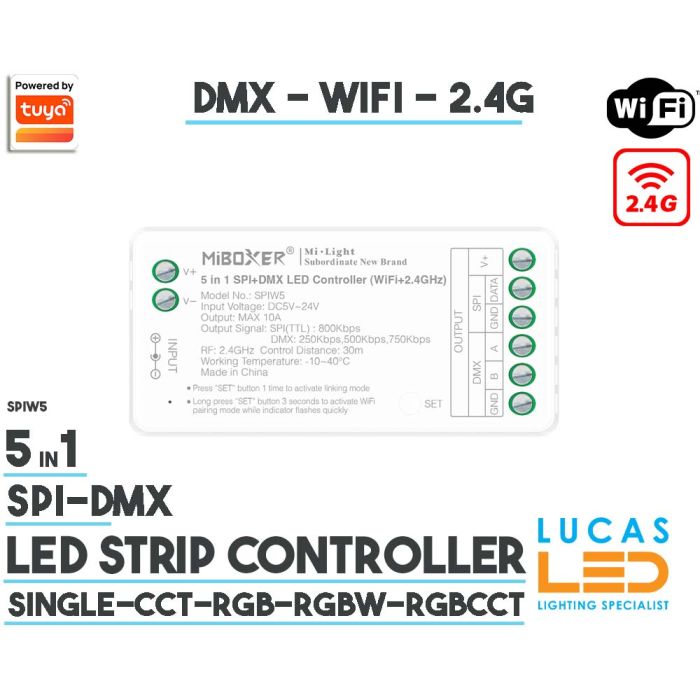

Overview of the MiBoxer SPIW5
The MiBoxer SPIW5 is a compact and powerful SPI LED controller designed to manage addressable RGB LED strips with high precision. Compatible with popular IC chips like WS2811, WS2812, and SK6812, it enables dynamic color effects and smooth animations across individual LEDs.
Thanks to 2.4GHz RF remote control and smartphone app support, users can easily adjust colors, speed, brightness, and effects in real time. The SPIW5 is ideal for use in custom lighting setups, such as signage, gaming rooms, decorative lighting, and creative installations.
Its user-friendly interface and broad compatibility make it a smart choice for both home and professional use, offering flexibility, creative freedom, and reliable performance.
TECHNICAL DATA:
Product Name: 5 in 1 SPI+DMX LED Controller (WiFi+2.4G)
Model: SPIW5
Input Voltage: DC5V~24V
Output Current: Max 10A
Output signal: SPI(TTL) 800Kbps (Max 1024 Pixel) / DMX: 250Kbps(Max 256 Pixel) / DMX: 500Kbps(Max 512 Pixel) / DMX: 750Kbps(Max 768 Pixel)
Standby current: 20mA
Protocol: WiFi +2.4GHz RF
Control Distance: RF: 30m
Materials and Construction
The MiBoxer SPIW5 is built with high-quality materials to ensure reliable and long-lasting performance. Its compact and robust design makes it suitable for various indoor environments such as homes, offices, commercial spaces, and artistic installations. With an IP20 rating, it is designed for indoor use, providing stable operation even in variable environmental conditions.
Features and Performance
The MiBoxer SPIW5 is an advanced LED controller supporting 5 output modes: single color, CCT, RGB, RGBW, and RGBCCT. It accepts input voltages from 5V to 24V and delivers up to 10A output, supporting control of up to 1024 pixels via SPI. Equipped with WiFi and 2.4GHz RF wireless technology, it enables remote control up to 30 meters. The controller offers dynamic modes including 28 white tones and 80 RGB colors, plus 8 music modes activated via the built-in microphone or smartphone.
Smart Integration and Control

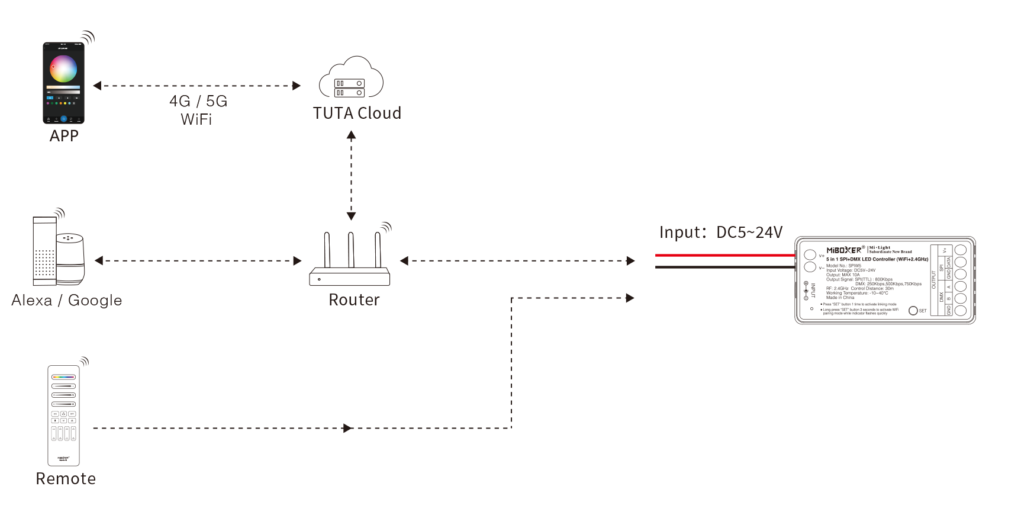

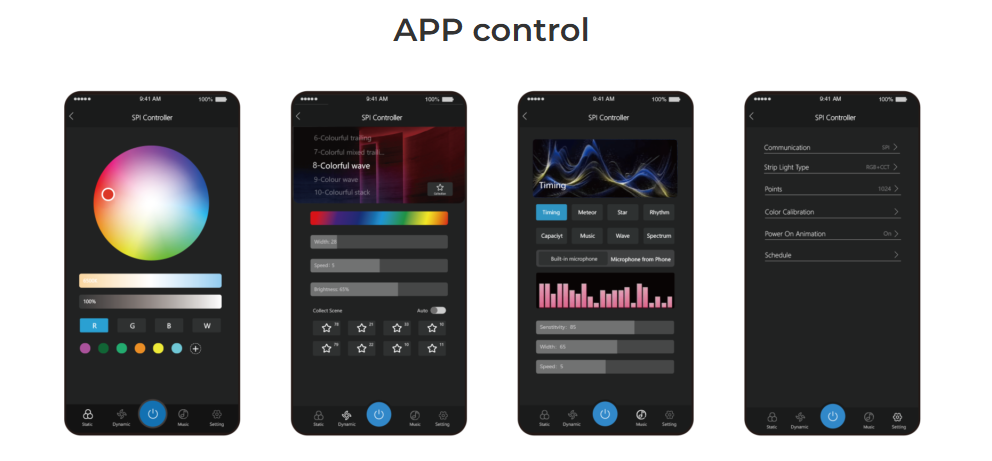

The MiBoxer SPIW5 is compatible with the Tuya Smart app, allowing users to control colors, brightness, modes, and speed remotely from their smartphone. It also supports voice control through Amazon Alexa and Google Assistant, providing a seamless smart lighting experience. Additionally, it works with MiBoxer’s C9 and B9 remote controls, offering multiple control options.
Energy Efficiency and Savings
Designed to optimize energy consumption, the MiBoxer SPIW5 allows users to adjust brightness and dynamic modes to fit their needs, helping reduce power use and lower electricity bills. The built-in Do Not Disturb (DND) function is useful in areas prone to power interruptions, contributing further to energy savings.
Final Overview
The MiBoxer SPIW5 is a versatile and powerful LED controller ideal for applications requiring precise, dynamic lighting control. With multi-mode support, remote control capabilities, and smart integration, it is an excellent choice for anyone seeking personalized, automated lighting solutions in both residential and commercial settings.
