SPI Addressable Digital LED Strip Controller 4 Zone • WiFi+2.4GHz • 5 in 1 Single color - CCT - RGB - RGBW -RGBCCT • 5-24V • 10A •

SPI LED Strip Controller 4 Zone • 5 in 1 SPI  • WiFi+2.4GHz • Single color - CCT- RGB - RGBW - RGBCCT• Control Distance 30m • Simple Installation • Music Control by 4 Zones •

Ideal for: Living Rooms, Bedroom, Kitchens, Home Offices, Smart Homes, Conference Room, Beauty Saloon, Restaurants, Pubs, etc...

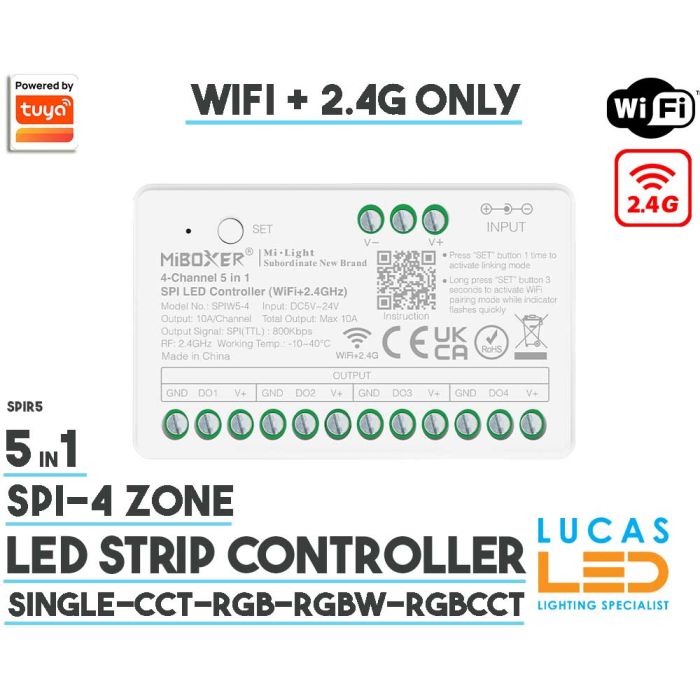

Overview of the MiBoxer SPIW5-4

SPIW5-4 5 in 1 SPI WiFi+2.4G controller have 4 channel output, compatible with DC5-24V input, specially designed for SPI LED srtrip, support WiFi+2.4GHz wireless technology, working with Tuya smart App to set up the feature of LED strip. It can change dynmaic color, brightness, select dynamic mode and have music function.

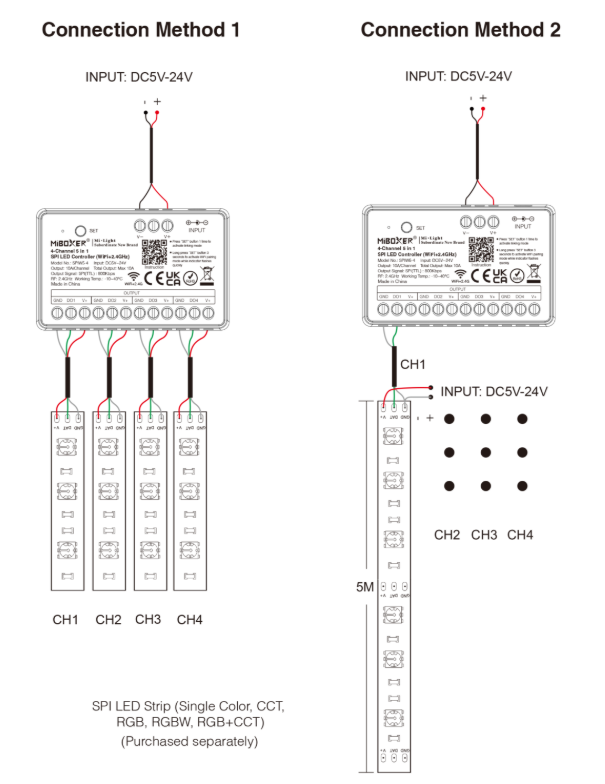

• 4 individual output and control 4 zone SPI led strip independently
  Pixel Dots: Max 1024
  Output Signal :SPI(TTL) 800Kbs
  Compatible with single color/CCT/ RGB/ RGBW/ RGB+CCT SPI LED strip light
  Color, pixel dots, speed, static and dynamic mode, music mode are adjustable
  Dynamic mode : 28 kinds of white color, 80 kinds of colorful modes,
  support to change color, brightness, deepth, speed of all modes
  4 kinds of music mode, built in internal microphone and smart phone microphone catch signal
  Freely switch dynamic or static or music mode

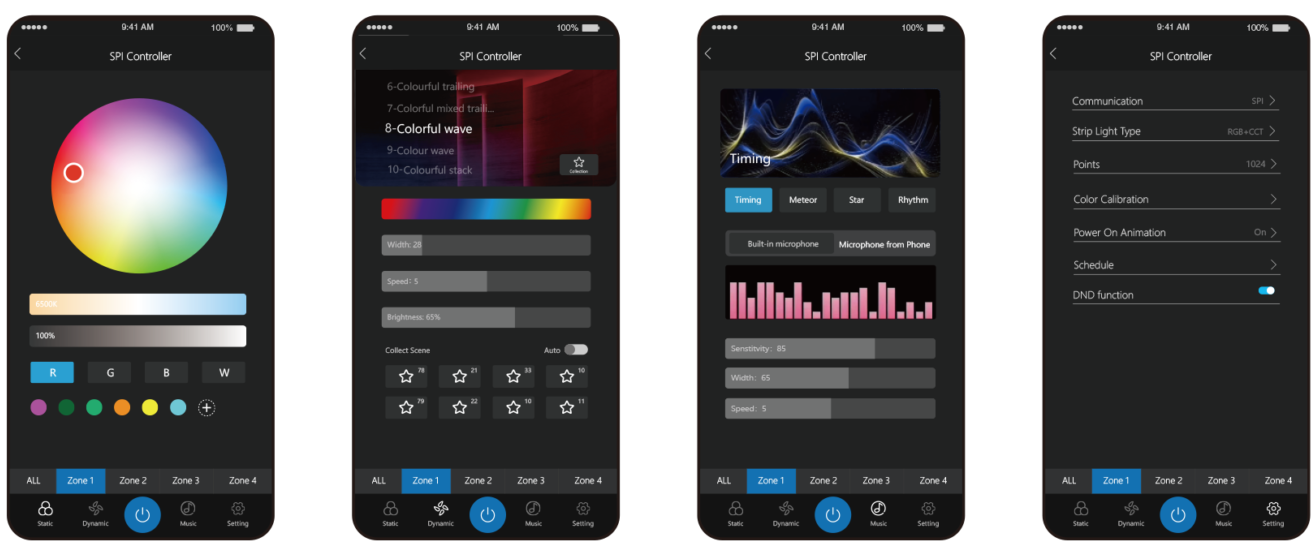

  Setting boot animation via Tuya Smart App
  Have DND mode and usual used in power failure area to save power.


Compatible chips( controller don't need to set chip types)

TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815，SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)

Materials and Construction

The MiBoxer SPIW5 is built with high-quality materials to ensure reliable and long-lasting performance. Its compact and robust design makes it suitable for various indoor environments such as homes, offices, commercial spaces, and artistic installations. With an IP20 rating, it is designed for indoor use, providing stable operation even in variable environmental conditions.

Features and Performance

The MiBoxer SPIW5-4 zone is an advanced LED controller supporting 5 output modes: single color, CCT, RGB, RGBW, and RGBCCT. It accepts input voltages from 5V to 24V and delivers up to 10A output, supporting control of up to 1024 pixels via SPI. Equipped with WiFi and 2.4GHz RF wireless technology, it enables remote control up to 30 meters. The controller offers dynamic modes including 28 white tones and 80 RGB colors, plus 8 music modes activated via the built-in microphone or smartphone.

Smart Integration and Control

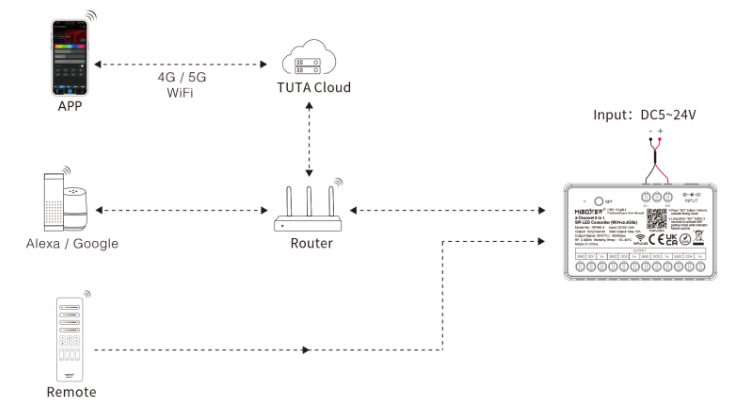

The MiBoxer SPIW5 is compatible with the Tuya Smart app, allowing users to control colors, brightness, modes, and speed remotely from their smartphone. It also supports voice control through Amazon Alexa and Google Assistant, providing a seamless smart lighting experience. Additionally, it works with MiBoxer’s C9 and B9 remote controls, offering multiple control options.

Energy Efficiency and Savings

Designed to optimize energy consumption, the MiBoxer SPIW5 allows users to adjust brightness and dynamic modes to fit their needs, helping reduce power use and lower electricity bills. The built-in Do Not Disturb (DND) function is useful in areas prone to power interruptions, contributing further to energy savings.

Final Overview

The MiBoxer SPIW5-4 is a versatile and powerful LED controller ideal for applications requiring precise, dynamic lighting control. With multi-mode support, remote control capabilities, and smart integration, it is an excellent choice for anyone seeking personalized, automated lighting solutions in both residential and commercial settings.
