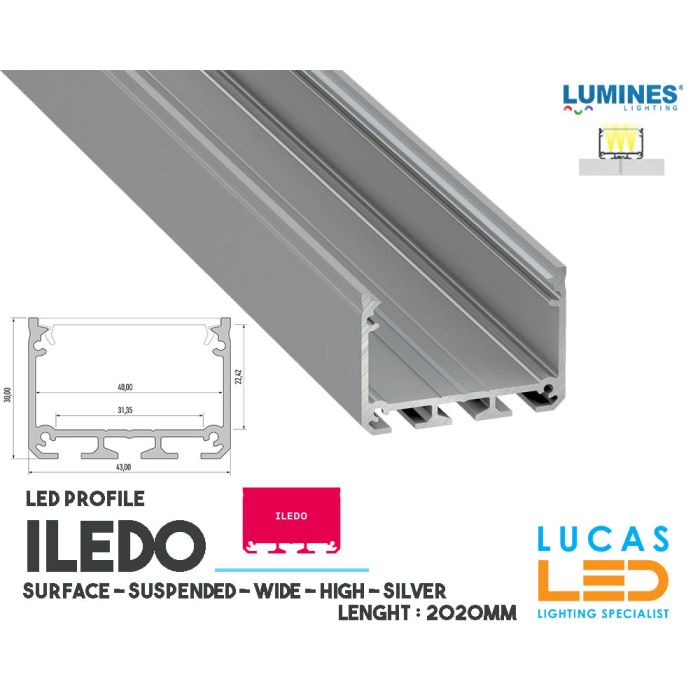

Surface LED Profile • ARCHITECTURAL • SUSPENDED • "ILEDO" • SILVER • Aluminium • 2.02 Meters lenght • PRO • multi set •
From €62.52 €50.83
To €108.02 €87.82
Surface LED Profile • ARCHITECTURAL • SUSPENDED • "ILEDO" • SILVER • Aluminium • 2.02 Meters lenght • PRO • multi set • channel for Led strip lighting.
Led Profile ILEDO is a surface mounted profile for lighting in offices, stores and homes. Perfect for hanging, architectural lighting.
LED strip width:
3 x 10 mm
SPECIFICATIONS:
Color variations:
- anodized silver,
- lacquered white (RAL9016)
Mounting:
two-sided adhesive tape,
mounting screws,
mounting springs,
pendants
ACCESSORIES
COVER (diffusers):
- WIDE
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* frosted (PMMA),
* milky frosted (PMMA)
- PRISMATIC PC
* transparent (PC)
Mounted from the top, snap-on.
END CAPS:
aluminium or plastic caps with or without a hole in 3 color variations (white, silver, gray)
MOUNTING PROFILE:
mounting profile MODI
OTHER ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°,
mounting springs,
pendants
Profile is sold in standard lengths: 2020 mm.
There is a possibility of cutting the profiles to any size.
INSTALLATION DIAGRAM:

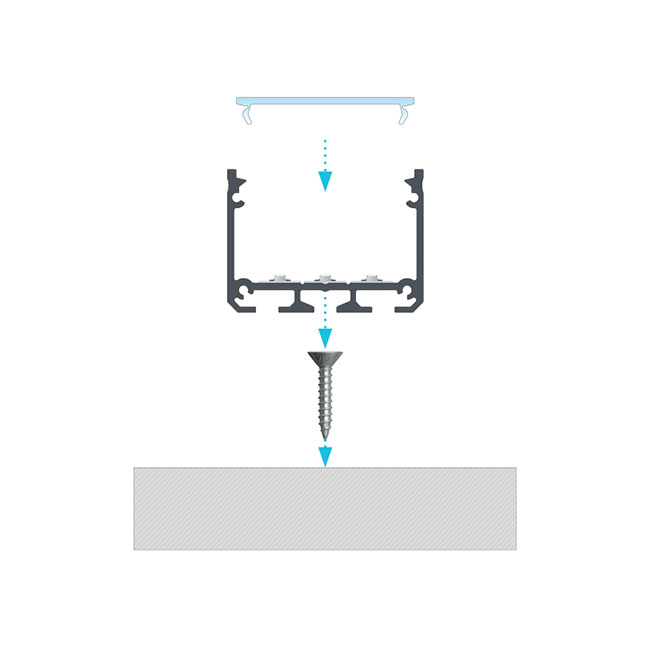

Installation manual for ILEDO profile with WIDE cover, using mounting screw

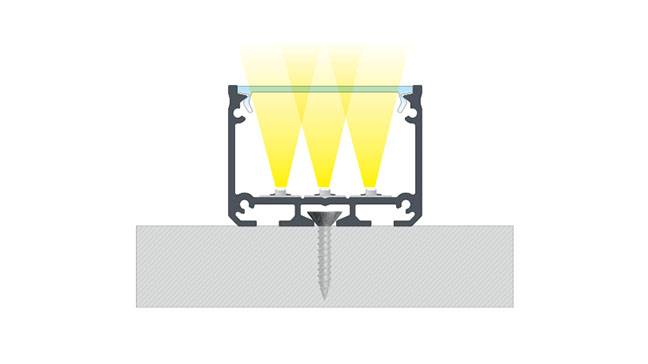

End result of the assembly of ILEDO profile with WIDE cover, using mounting screw

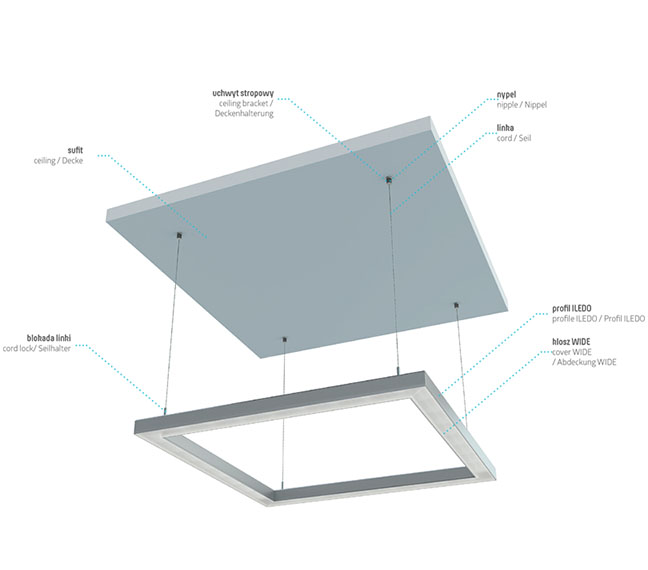

Application of the iLEDO profile as a pendant lamp

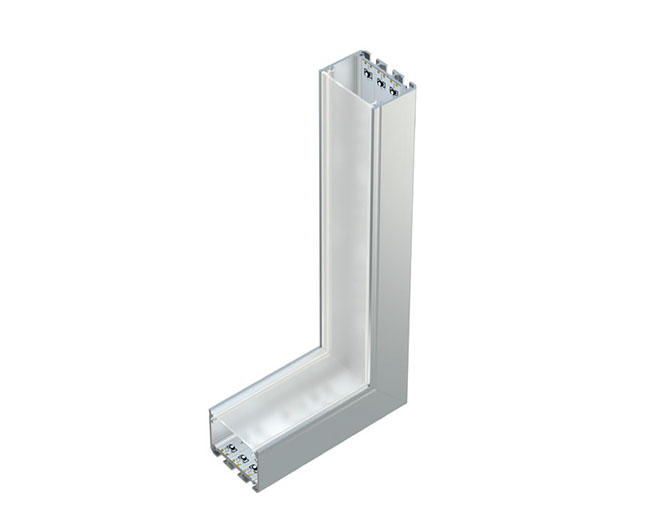

Vertical connection of ILEDO profiles at 90 degrees angle

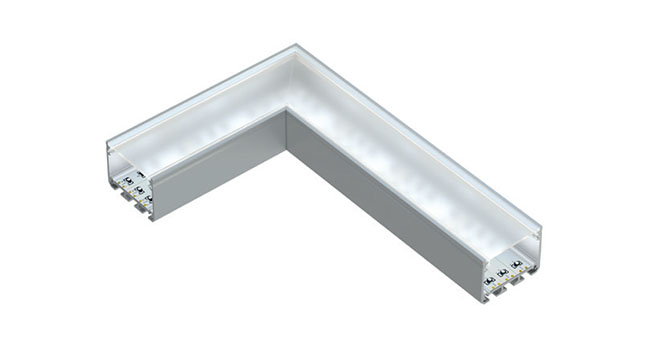

Horizontal connection of ILEDO profiles at 90 degrees angle

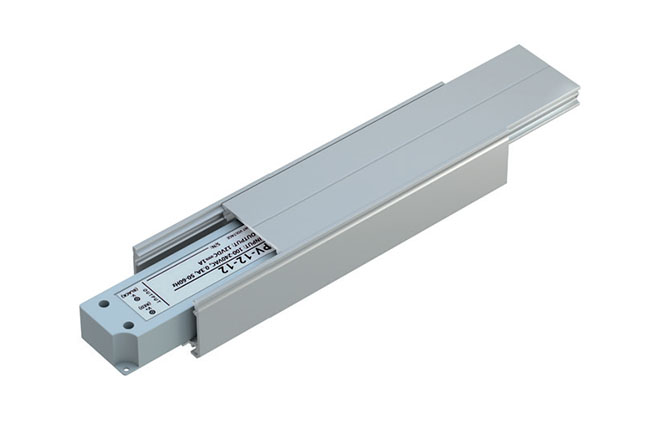

Possibility to hide the power supply inside of ILEDO profile using MODI mounting profile

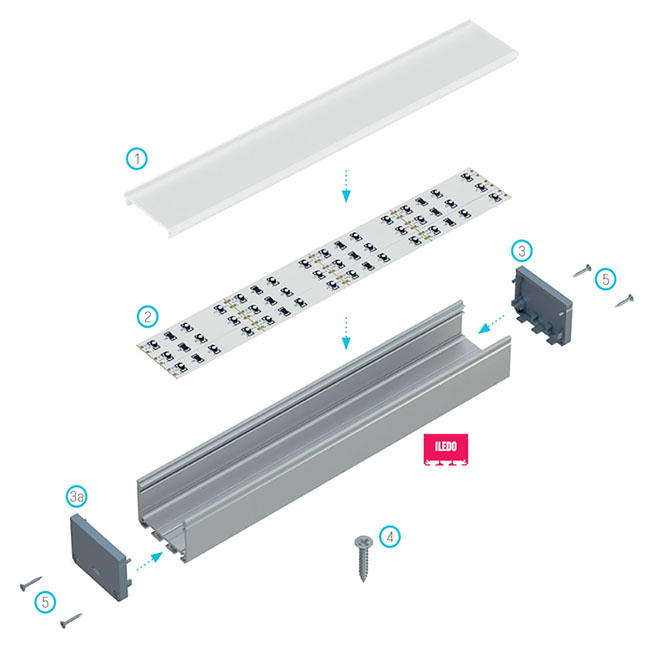

Assembly scheme for elements of the lighting system using profile ILEDO and (1) WIDE cover, (2) three LED strips, (3) end cap without hole, (3a) end cap with hole, (4) mounting screw, (5) end caps mounting screws
-
| Body colour | Silver anodised |
|---|---|
| Width | 43.00 |
| Depth & High | 30.00 |
| Max Strip Width | 40.00 |
-
