Recessed LED Profile FURNITURE "W" White 2.02 Meters
From €34.65 €28.17
To €51.06 €41.51

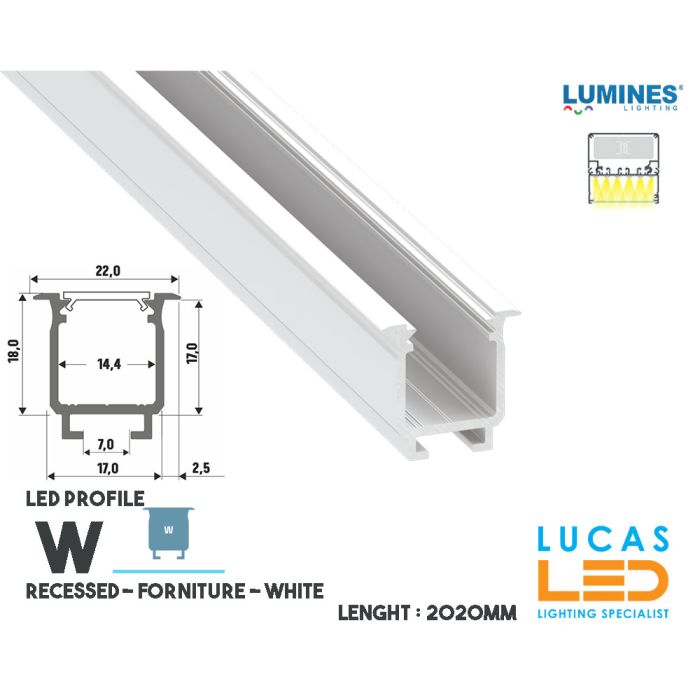

LED Profile • RECESSED • FURNITURE • "W" • WHITE • Aluminium • 2.02 Meters length • PRO • multi set • channel for Led Strip lighting.
Led Profile W is a groove mounted profile – for lighting kitchens and stores. Ideal for lighting shelves, countertops and stairs.
LED strip width:
• up to 12 mm
Compatible products:
SPECIFICATIONS:
Color variations:
- nonanodized,
- anodized silver,
- anodized black,
- anodized inox,
- lacquered white (RAL9016)
Mounting:
- mounting springs
Accessories
COVERS (diffusers):
- BASIC
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* frosted (PMMA),
* milky frosted (PMMA),
* lens 15 (PMMA),
* lens 30 (PMMA),
* black (PMMA)
Mounted from the top, snap-on.
END CAPS:
aluminium or plastic caps with a hole in 5 color variations (white, black, inox, silver, gray)
OTHER ACCESSORIES:
- straight connector,
- angular connector 90°,
- angular transverse connector,
- angular connector 120°,
- mounting springs,
- contactless switch
Profile is sold in standard lengths: 2020 mm.
There is a possibility of cutting the profiles to any size.
INSTALLATION DIAGRAM:
Instruction of the assembly of profile W with BASIC cover in the ceiling using mounting springs
The end result of installation of recessed profile W with a BASIC cover
Connecting W profiles using straight connector in a milled groove
The final result of the assembly of W profiles with the use of assembly spring
The final result of the assembly of W profiles with the use of assembly springs
Assembly scheme for elements of the lighting system using profile W and (1) BASIC cover (2), LED strips, (3) end caps with hole and (4) mounting springs
| Body colour | White lacquered Ral 9016 |
|---|---|
| Width | 22.00 |
| Depth & High | 18.00 |
| Max Strip Width | 14.40 |
-
