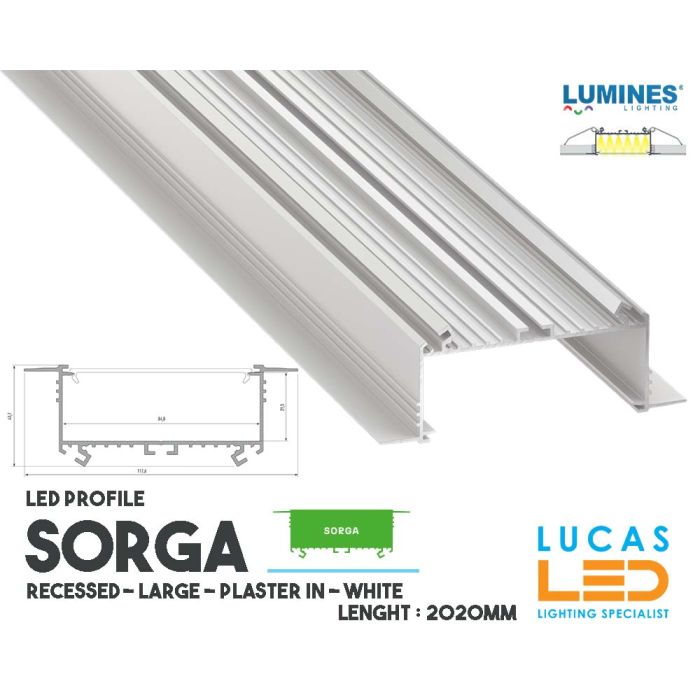

LED Profile • RECESSED • ARCHITECTURAL • PLASTER IN • "SORGA" • WHITE • Aluminium • 2.02 Meters length • PRO • multi set • channel for Led Strip lighting.
Led Profile SORGA is a wide recessed profile. Designed to be used in public utility premises and industrial facilities.
LED strip width:
6 x 12 mm
SPECIFICATIONS:
Color variations:
- anodized silver,
- lacquered white (RAL9016)
Mounting:
groove mounted between two plasterboards with plastered finish,
mounting springs
ACCESSORIES
COVERS (diffusers):
- SUPERWIDE
* transparent (PMMA),
* milky (PMMA),
* frozen (PMMA),
* frosted (PMMA),
* milky frosted (PMMA)
- SUPERWIDE PLEXI
* milky (PLEXI)
Mounted from the top, snap-on.
END CAPS:
aluminium caps with a hole in 2 color variations (white or silver)
OTHER ACCESSORIES:
straight connector,
angular connector 90°,
angular transverse connector,
angular connector 120°,
mounting springs
Profile is sold in standard lengths: 2020 mm.
There is a possibility of cutting the profiles to any size.
INSTALLATION DIAGRAM:

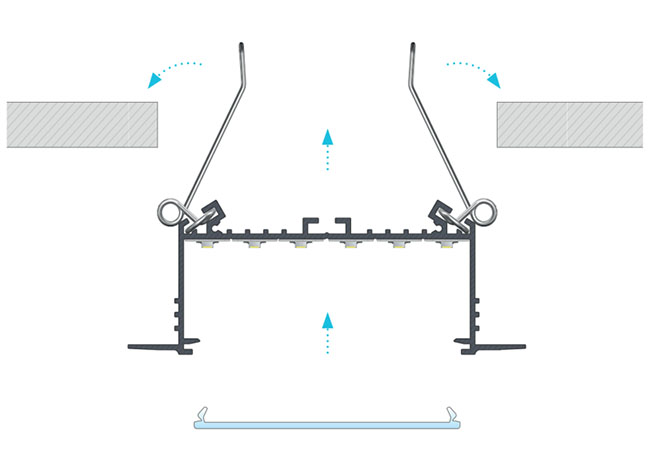

Installation manual for SORGA profile with SUPER WIDE cover, using mounting springs

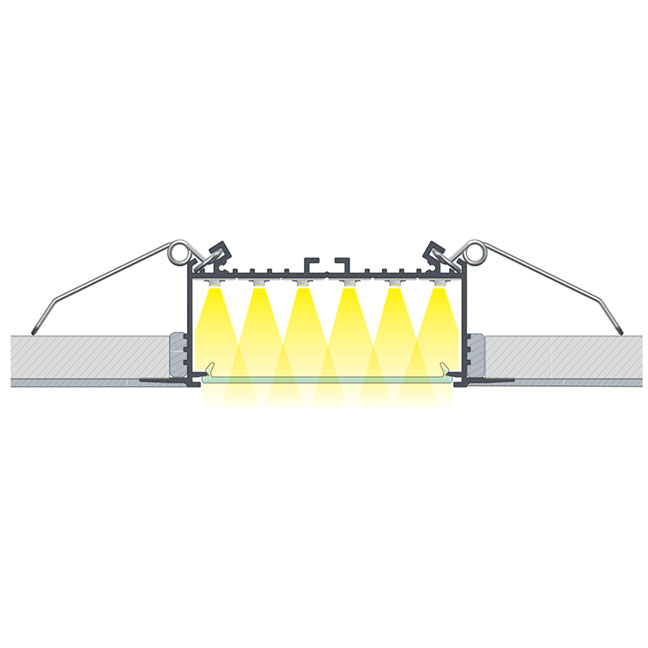

End result of the assembly of SORGA profile with SUPER WIDE cover using mounting springs. View after plastering

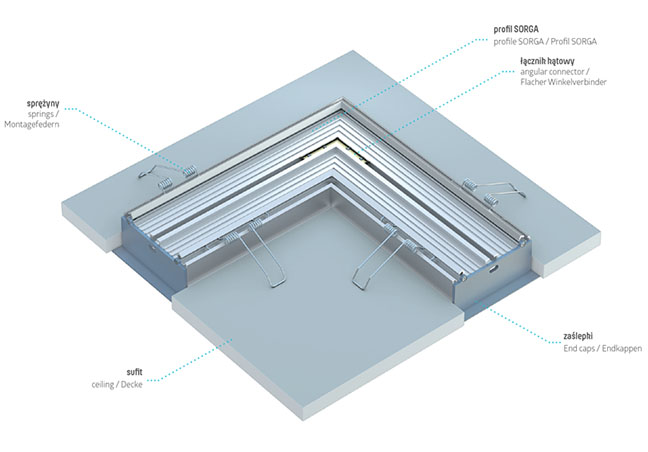

End result of the assembly of SORGA profile with SUPER WIDE cover using mounting springs and angular connector in isometric view from the top

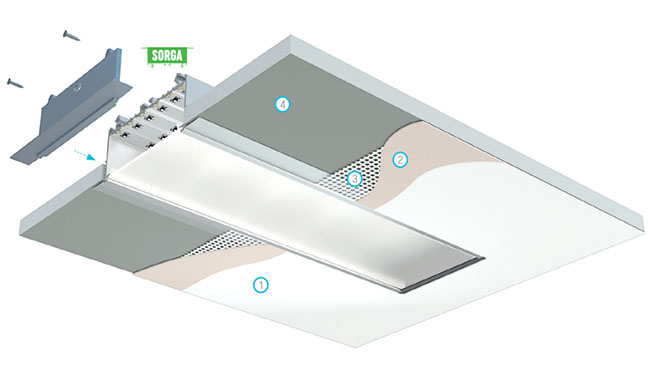

Stages of the assembly using recessed SORGA profile [1. paint, 2. gypsum, 3. net, 4. plasterboard]
| Body colour | White lacquered Ral 9016 |
|---|---|
| Width | 117.6 |
| Depth & High | 43.7 |
| Max Strip Width | 84.8 |
-
