LED Neon Natural White 1023 • 24V • 14W • IP65 • 680lm •10x23mm• Pro Version 3oz Cooper paths • 10 meter Roll • NL1023-14-NW-24

Name: LED Neon Natural White 1023 • 24V • 14W • IP65 • 680lm •10x23mm• Pro Version 3oz Cooper paths • 10 meter Roll • NL1023-14-NW-24
SKU: B-NL1023-14-NW-24

Be the first to review this product

From €0.00 €0.00

To €346.98 €282.10

Delivery time: 5-7 working days
(Less than 3 in stock)

SKU

B-NL1023-14-NW-24

Customize LED Neon Natural White 1023 • 24V • 14W • IP65 • 680lm •10x23mm• Pro Version 3oz Cooper paths • 10 meter Roll • NL1023-14-NW-24

LED Neon Flex NW NL1023 - 10m roll

Quantity

Mounting aluminium brackets NL1023: :

Quantity

Endcap bottom Wire NL1023:

Quantity

Endcap bottom Right Wire NL1023:

Quantity

Endcap bottom Left Wire NL1023:

Quantity

* Required Fields

Your Customization

LED Neon Natural White 1023 • 24V • 14W • IP65 • 680lm •10x23mm• Pro Version 3oz Cooper paths • 10 meter Roll • NL1023-14-NW-24

In stock

- +

€0.00 €0.00

Summary

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

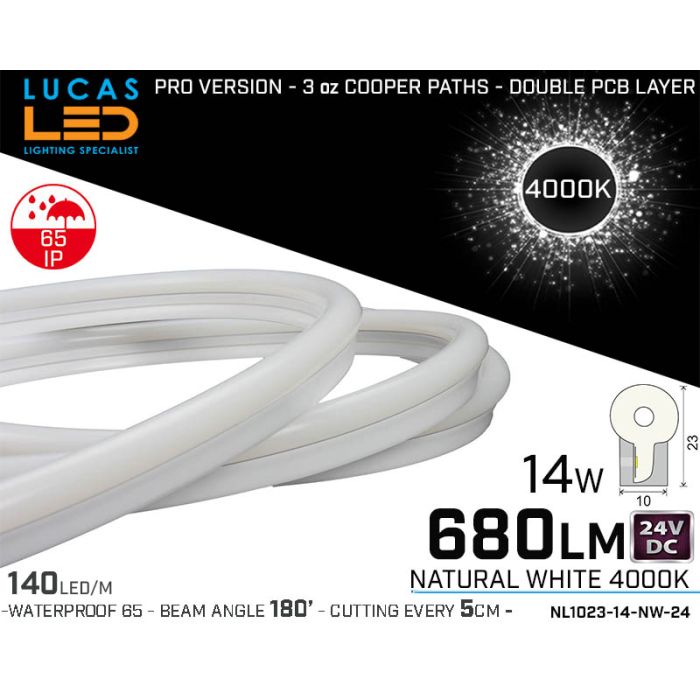

14W LED Neon Natural White flexible 1023 • 24V • IP65 • 680lm •10 x 23mm• Pro Version 3oz Cooper paths• price per 10 meter • NL1023-14-NW-24

High quality LED strip for professional use with seven LEDs in one module to achieve luminous efficacy up to 140 lm/W. Two layers of PCB with 3oz copper paths characterized by a lower voltage drop and lower operating temperature. On a base using adhesive tape 3M 300 LSE. LEDs that meet requirements of LM-80 test, guaranteeing small lumen decrease and colour constancy in time.

14W /m
24V DC
Ra>80
30000h L70 lifespan
10m reel length
Warranty 3 years

SPECIFICATION

Symbol: NL1023-14-RGB-24
EAN13: 5901289755634
ETIM CLASS: Light ribbon-/hose/-strip
Socket: wires
Model: Neon/Hose
Mains or non-mains: NMLS
Dimmable: yes
Power [W]: 14
Colour of light: RGB
Number of nodes per meter: 60
Degree of protection: IP65
Suitable for use:
cutting length [cm]: 10
Voltage [V]: 24
Voltage type: DC
Colour temperature [K]: N/A
Luminous flux [lm]: 220
Standby power consumption [W]: 0
Beam angle [°]: 180
Correspondence beam angle: Sphere 360°
Non-directional or directional:
Non-directional light source NDLS:
Survival factor: 0.9
Lumen maintenance factor: 0.96
With Self-adhesive: yes
Min. number of switching cycles: 50000
Rated life time L70/B50 at 25 °C [h]: 35000
Colour-tuneable light source (CTLS): yes
Connected light source (CLS): yes
High-luminance light source (HLLS): yes
Anti-glare shield: yes
Width [mm]: 10
Height/depth [mm]: 23
