150 watts LED Driver Power Supply • 6.25A • DC 24V for LED Strips •
LED Driver Power Supply • 150 watts • 6.25A • DC 24V for LED Strips •

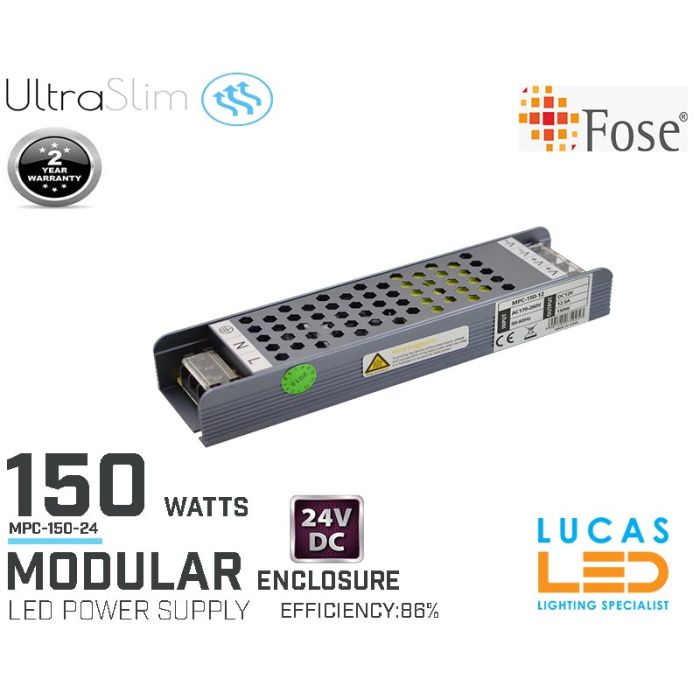

LED Power Supply 150 watts , 24V DC , 6.25A , IP20. Slim Design. Indoor use. Ideal for medium lenghts LED Strips. Driver can supply up to 30 m LED strips (max 150 watts ) depending of lenght. Friendly for electrician, fast & easy connection terminal.
Designed for indoor use , slim design , easy to hide.
Protections: Short circuit, Overload, Over temperature
Cooling by free air convention
100% full load burn-in test
Warranty 24 months
Dimensions: 195mm - 49mm - 29mm
Weight: 0,35 kg
Specification:
|
Parameter |
Value |
ETIM ID |
|---|---|---|
|
Symbol |
MPC-150-24 |
|
|
EAN13 |
5901289750264 |
|
|
ETIM CLASS |
DC-power supply |
EC002540 |
|
Rated supply voltage |
170-250V AC/47 ~ 63HzV |
EF007076 |
|
Voltage type of supply voltage |
DC |
EF000187 |
|
Power output |
150W |
EF003034 |
|
Housing |
Metal housing |
EF000150 |
|
Suitable for outdoor use |
no |
EF003532 |
|
Length |
195mm |
EF001438 |
|
Width |
49mm |
EF000008 |
|
Height |
29mm |
EF000040 |
|
Weight |
0.35kg |
EF000167 |
|
Protection class |
yes |
EF000004 |
|
Output voltage |
24 |
EF000187 |
|
Max. output current |
6.25A |
EF008284 |
|
Efficiency |
86% |
| Voltage | 24V |
|---|---|
| Water Resistance | IP20 Non Waterproof |
| Wattage | 150 |
| Warranty | 2 Years |
| Body | Enclosed Modular |
